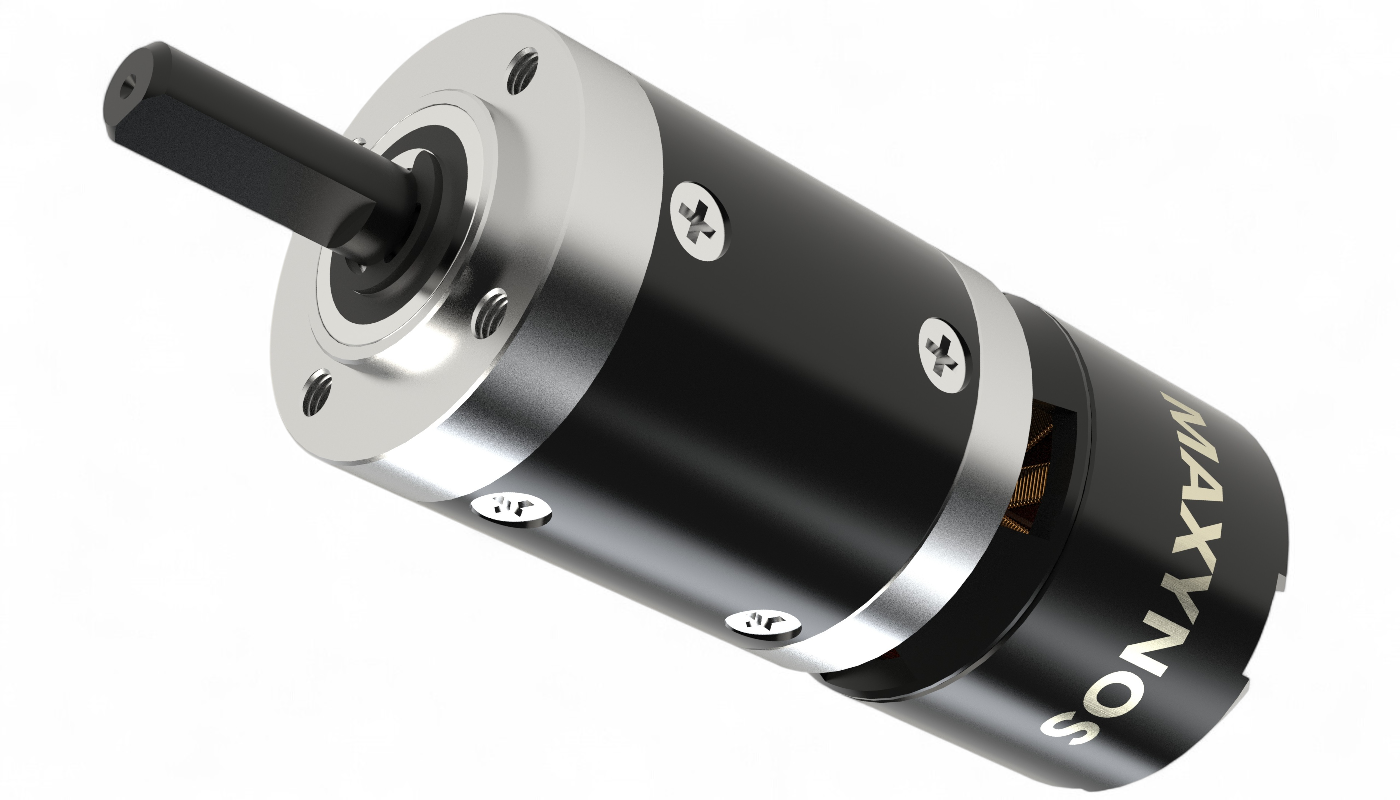

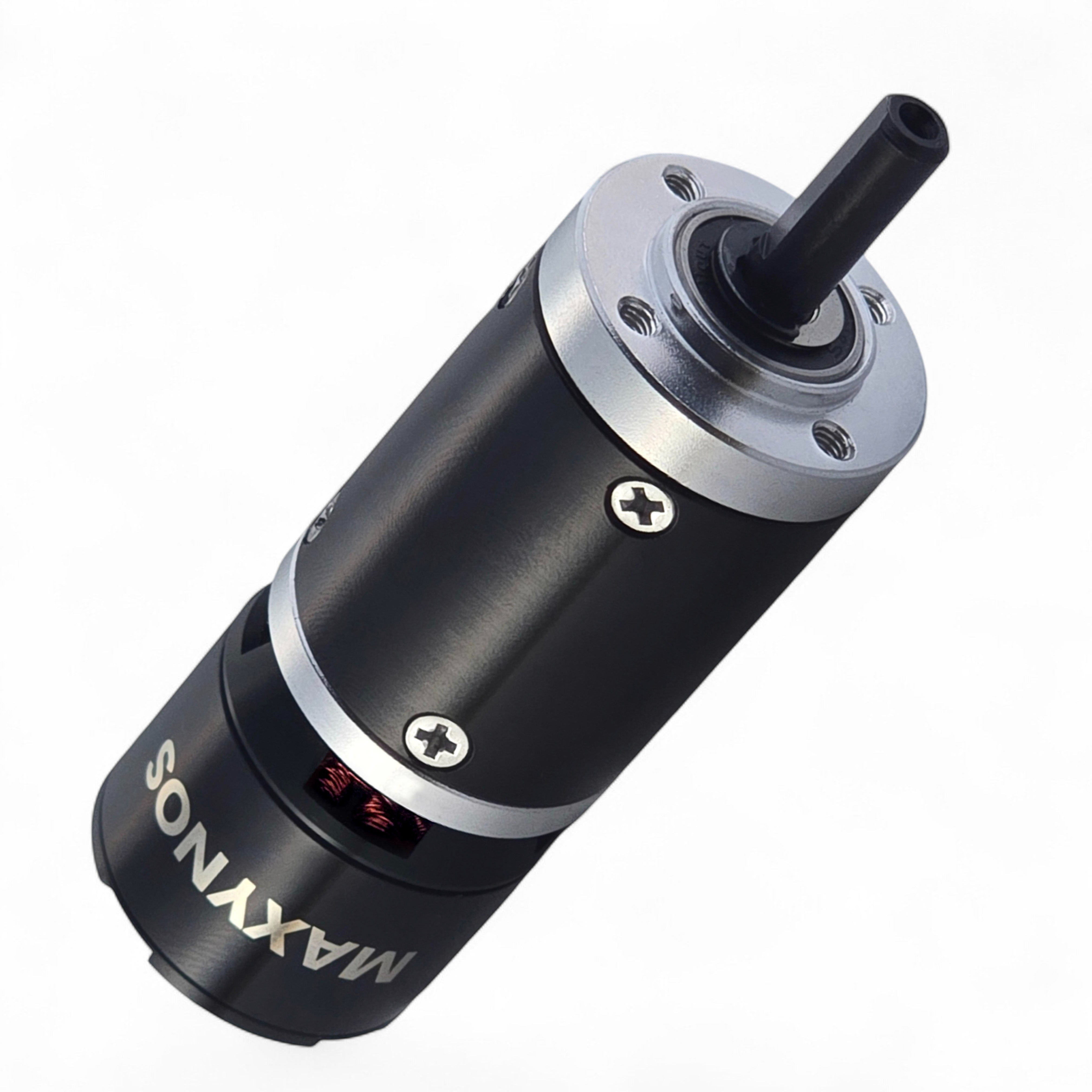

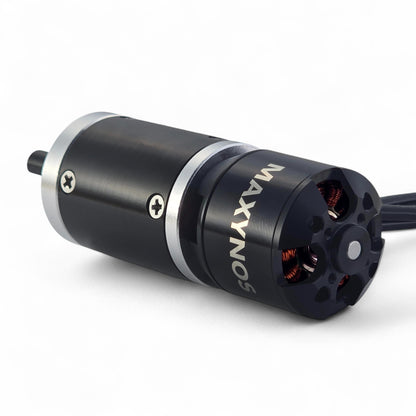

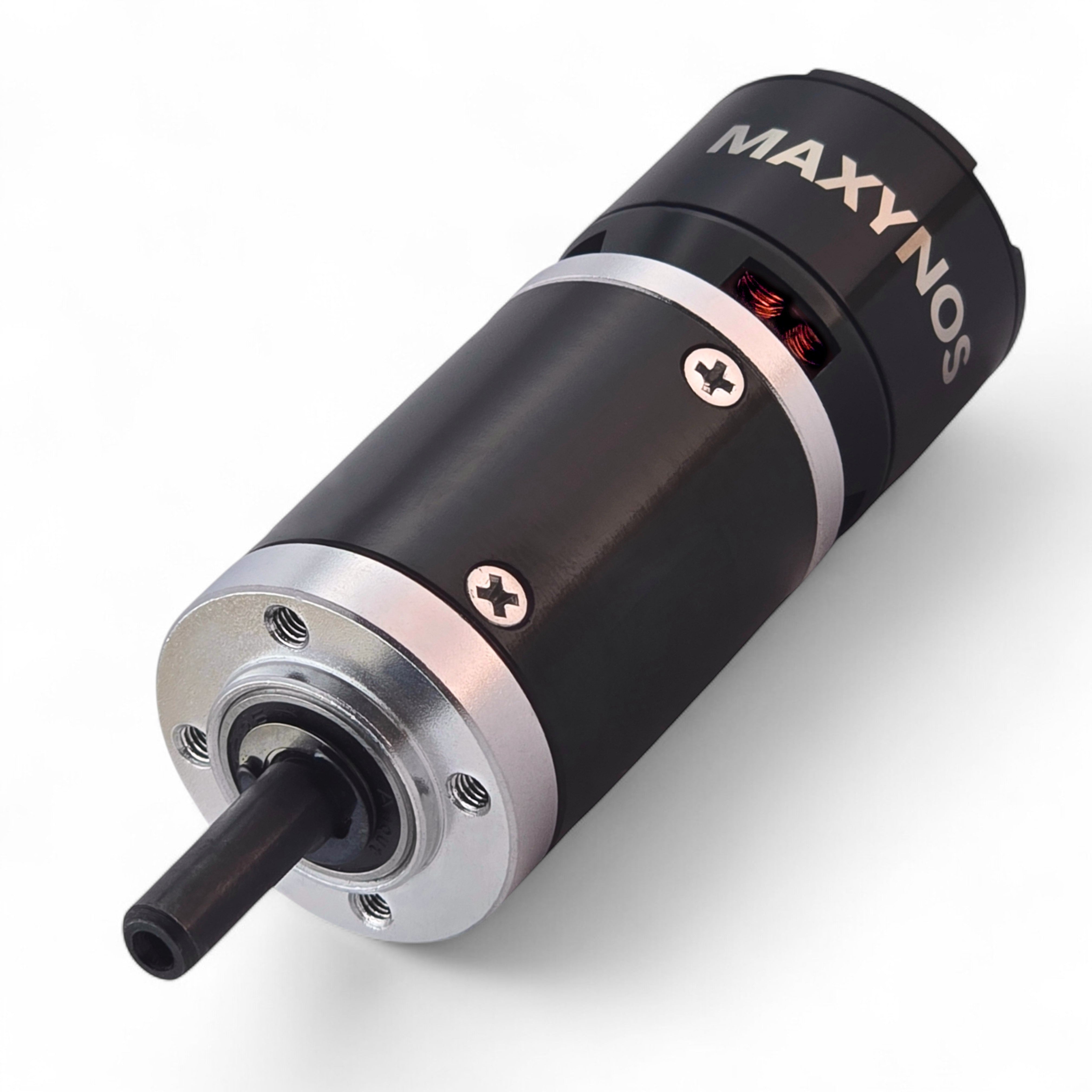

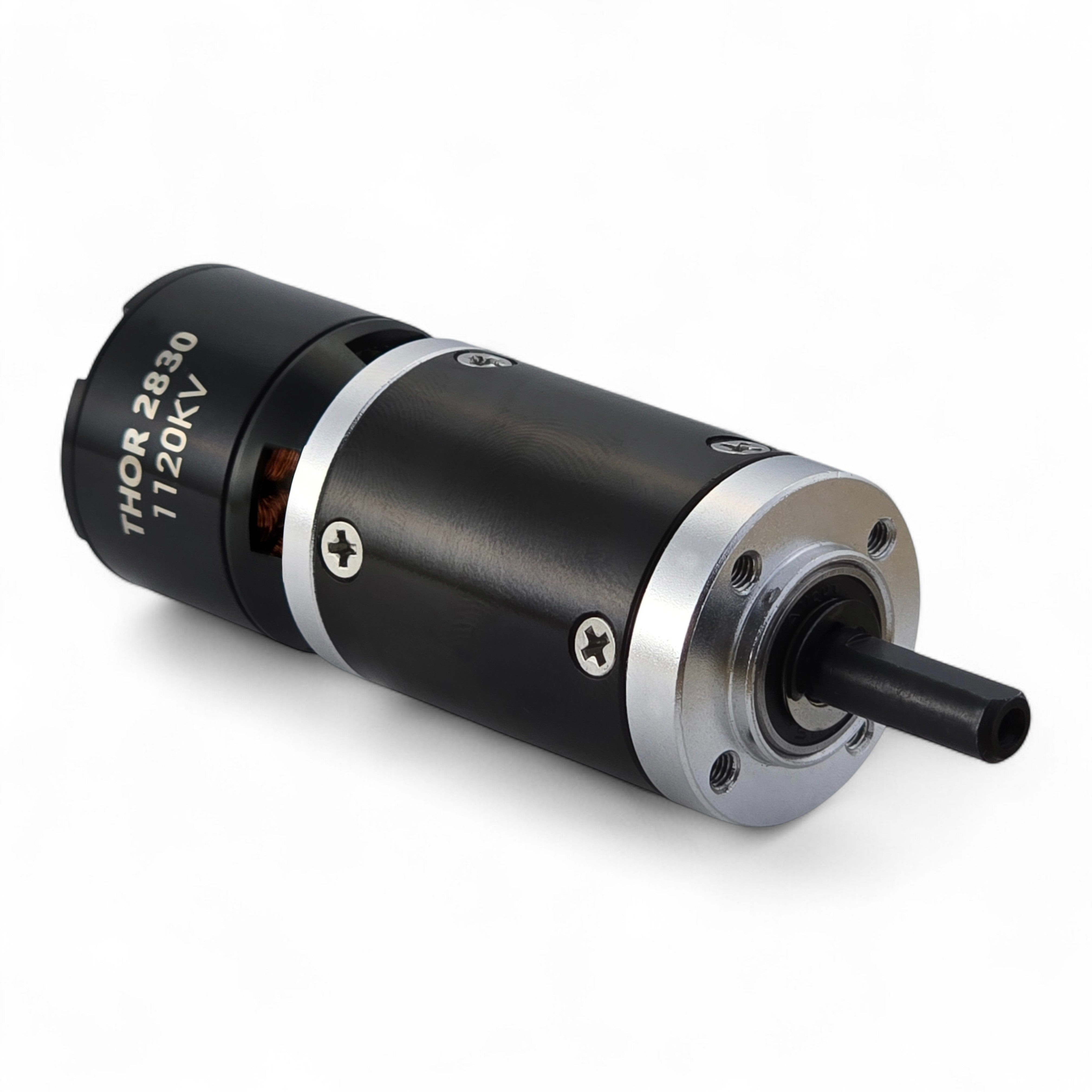

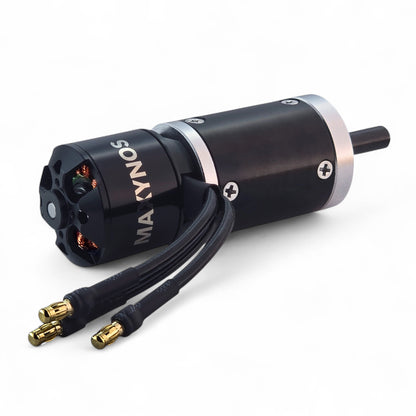

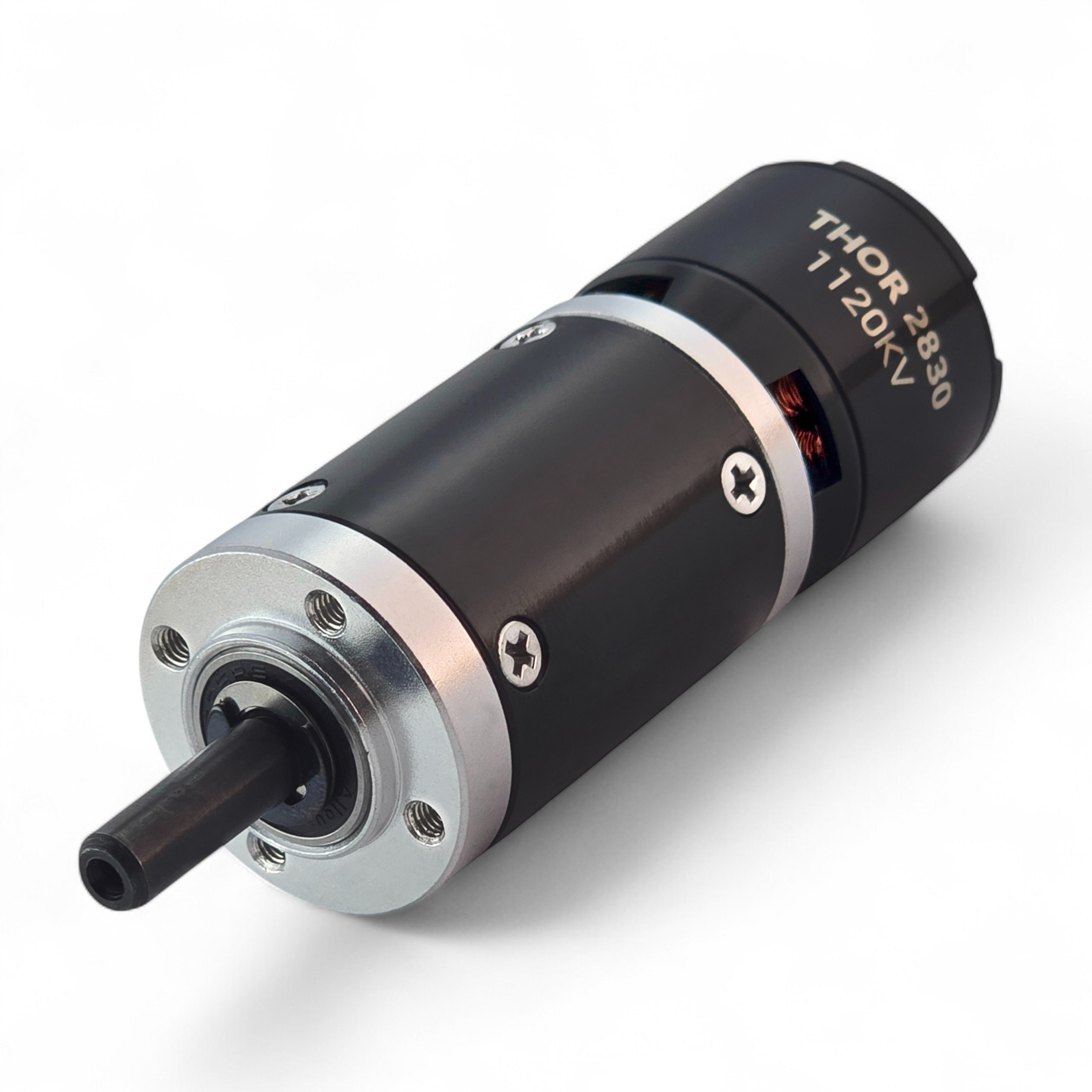

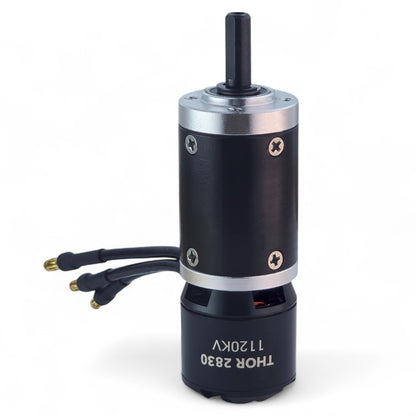

The MAXYNOS THOR 2830 (Maxynos Titanium High-power Out Runner) series is a premium line of Planetary Gearbox Brushless DC Motors (PGBM) engineered for superior performance, where the Output Rotor placed outside the motor core to obtain highest torque and provide the maximum limit of power consumption, efficiency and the best size to power ratio.

MAXYNOS THOR PGBM series is your definite choice when it comes to maximum power, torque, speed, and size.

Gear Ratio
Gear Ratio: 1:14 Ratio
KV Rating
KV Rating: 1120KV
$59.99
Shipping calculated at checkout.

Pairs well with ESC

Additional Product details

Find more about the Product

Specifications:
Specifications:

1120KV Motor Specifications:

  • Rated Voltage: DC 7–15V
  • Power: 380W
  • No-Load Current: 1.2A
  • Stall Current: 26A
  • Number of Poles: 14
  • Internal Resistance: 0.068 Ohm
  • Connector: 3.5mm bullet plug
  • Recommended Controller: Maxynos 45A ESC or above

880KV Motor Specifications:

  • Rated Voltage: DC 7–18V
  • Power: 340W
  • No-Load Current: 0.8A
  • Stall Current: 22A
  • Number of Poles: 14
  • Internal Resistance: 0.108 Ohm
  • Connector: 3.5mm bullet plug
  • Recommended Controller: Maxynos 45A ESC or above

Planetary Gearbox - Exact Reduction Ratio:

  • Gear ratio 14:1 → Exact reduction ratio 13.73:1
  • Gear ratio 19:1 → Exact reduction ratio 19.20:1
  • Gear ratio 51:1 → Exact reduction ratio 50.89:1

Planetary Gear Motor Weight:

  • THOR 2830 gear ratio 14:1 weight = 166g
  • THOR 2830 gear ratio 19:1 weight = 167g
  • THOR 2830 gear ratio 51:1 weight = 185g

Planetary Gearbox Speed (RPM) Calculations:

  • Motor Speed (RPM) = (Motor KV value) × (Applied Voltage) → Example: 1120KV Motor speed at 14.8V → 1120 × 14.8 = 16,576 RPM
  • Gearbox Speed (RPM) = Motor speed ÷ Exact reduction ratio → Example: Gear speed (RPM) at Ratio 14:1 & 14.8 Volts → 16,576 ÷ 13.73 = 1207 RPM
Design
Design

Maxynos ratio 51

Maxynos ratio 14, 19

Compatible With
Compatible With

maxynos 70A ESC

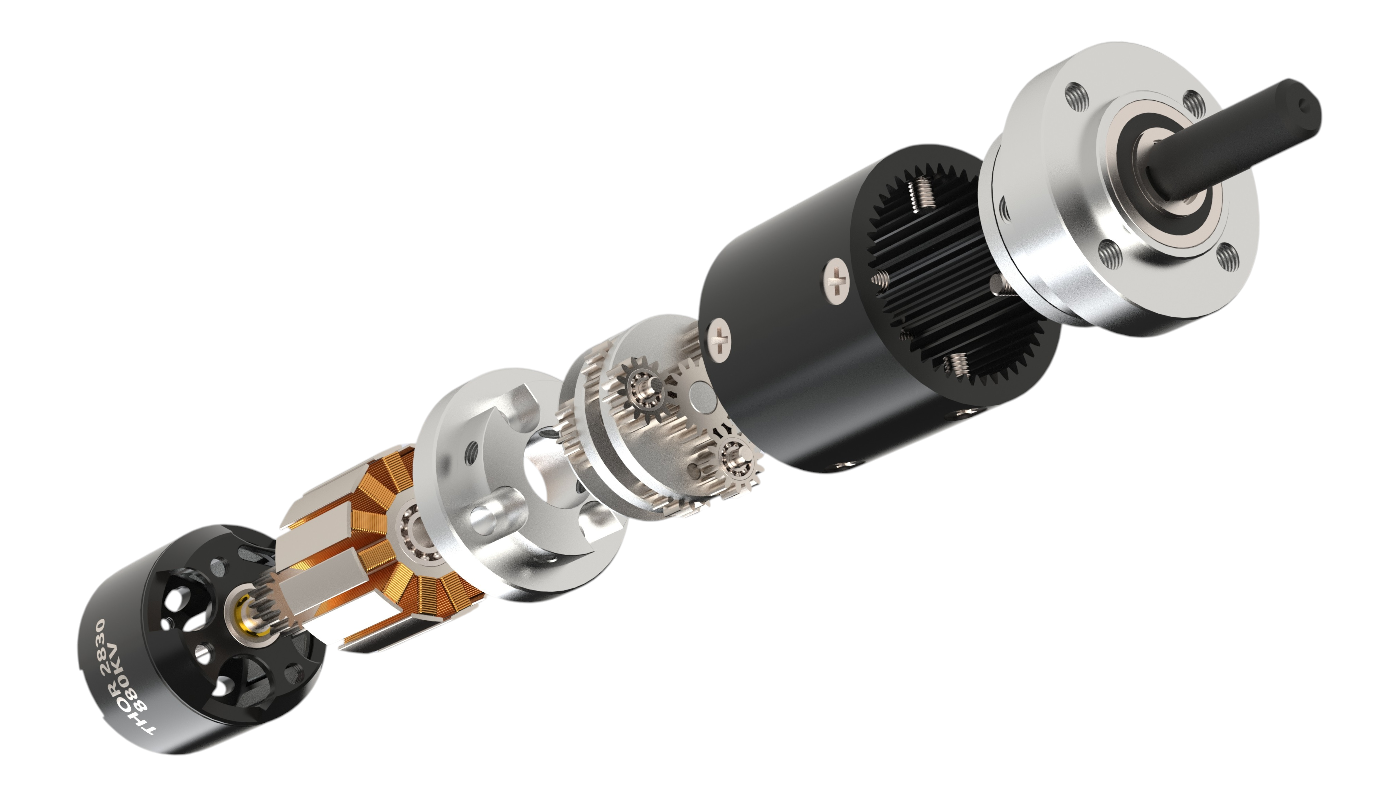

Inside THOR 2830

THOR 2830 comes equipped with a premium planetary gearbox, providing smooth acceleration, minimal backlash, and enhanced load handling, making it the ideal choice for robotics, RC vehicles, and smart automation projects.

THOR series offers an exceptional size-to-power ratio, peak torque output, and rugged reliability — engineered for creators, builders, and professionals who demand nothing but the best.

High Power Outrunner

The THOR 2830 comes equipped with a premium planetary gearbox, providing smooth acceleration, minimal backlash, and enhanced load handling — making it the ideal choice for robotics, RC vehicles, and smart automation projects.

THOR series offers an exceptional size-to-power ratio, peak torque output, and rugged reliability — engineered for creators, builders, and professionals who demand nothing but the best.

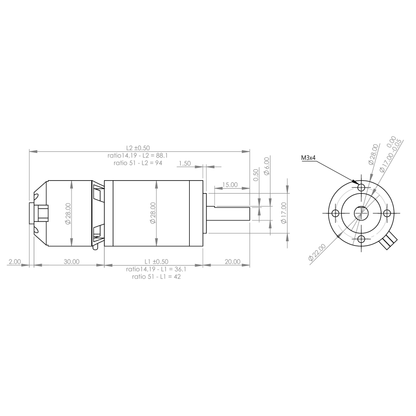

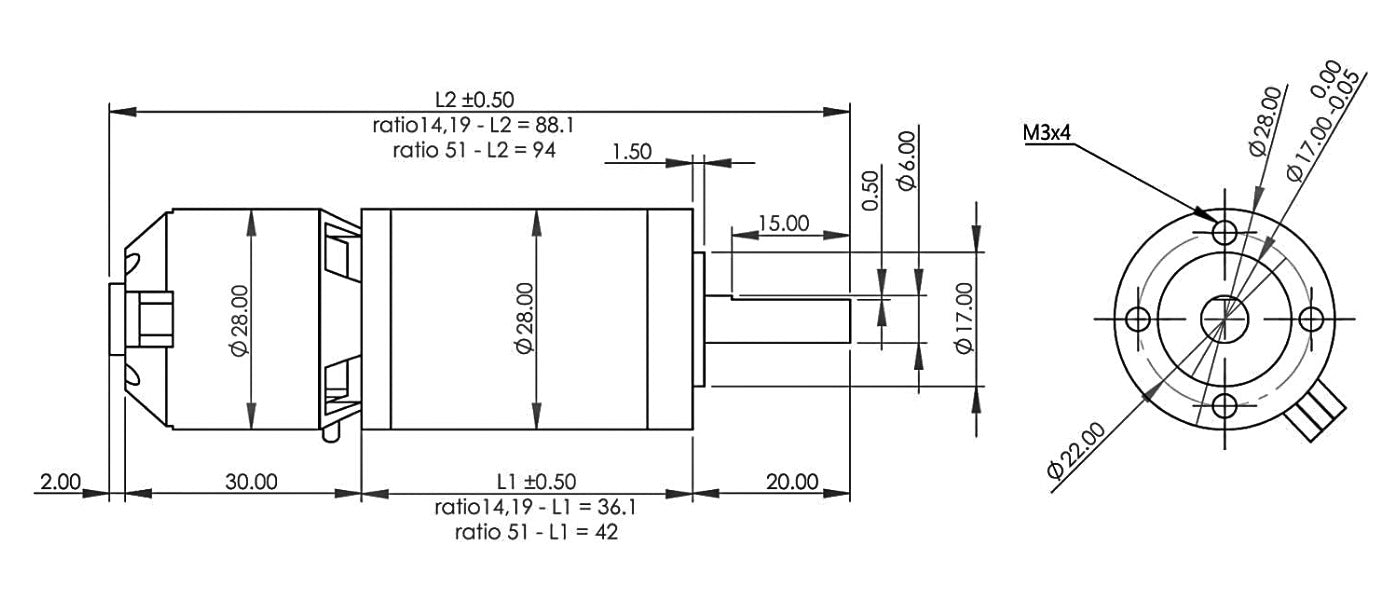

Motor Dimensions in mm

Premium Performance with N52 Magnets & Copper Windings

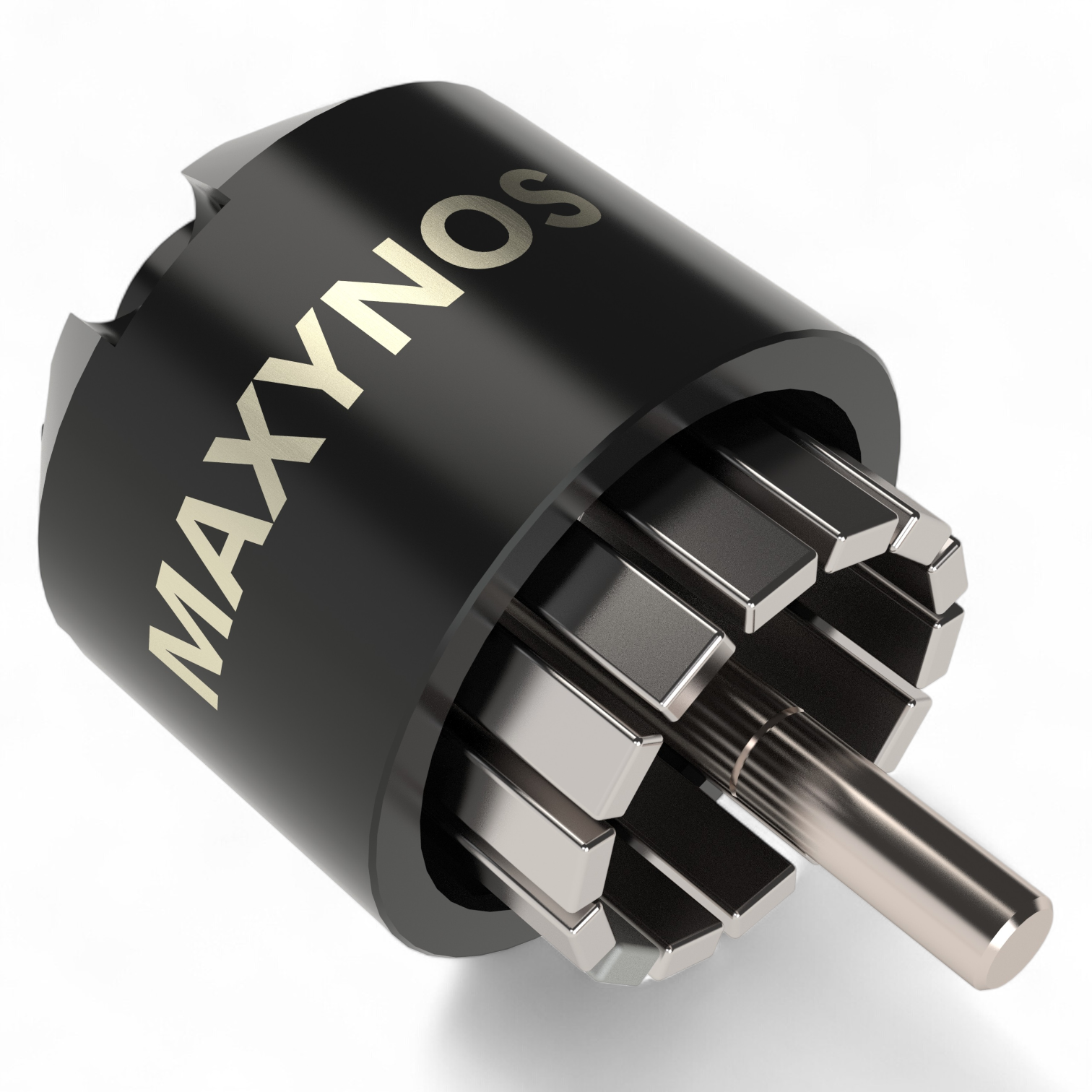

High-Grade N52 Neodymium Magnets

This motor is built with 14 premium N52 neodymium magnets inside the rotor, delivering extreme magnetic strength and smooth rotation. The combination ensures maximum torque, higher efficiency, and consistent long-term performance under demanding loads.

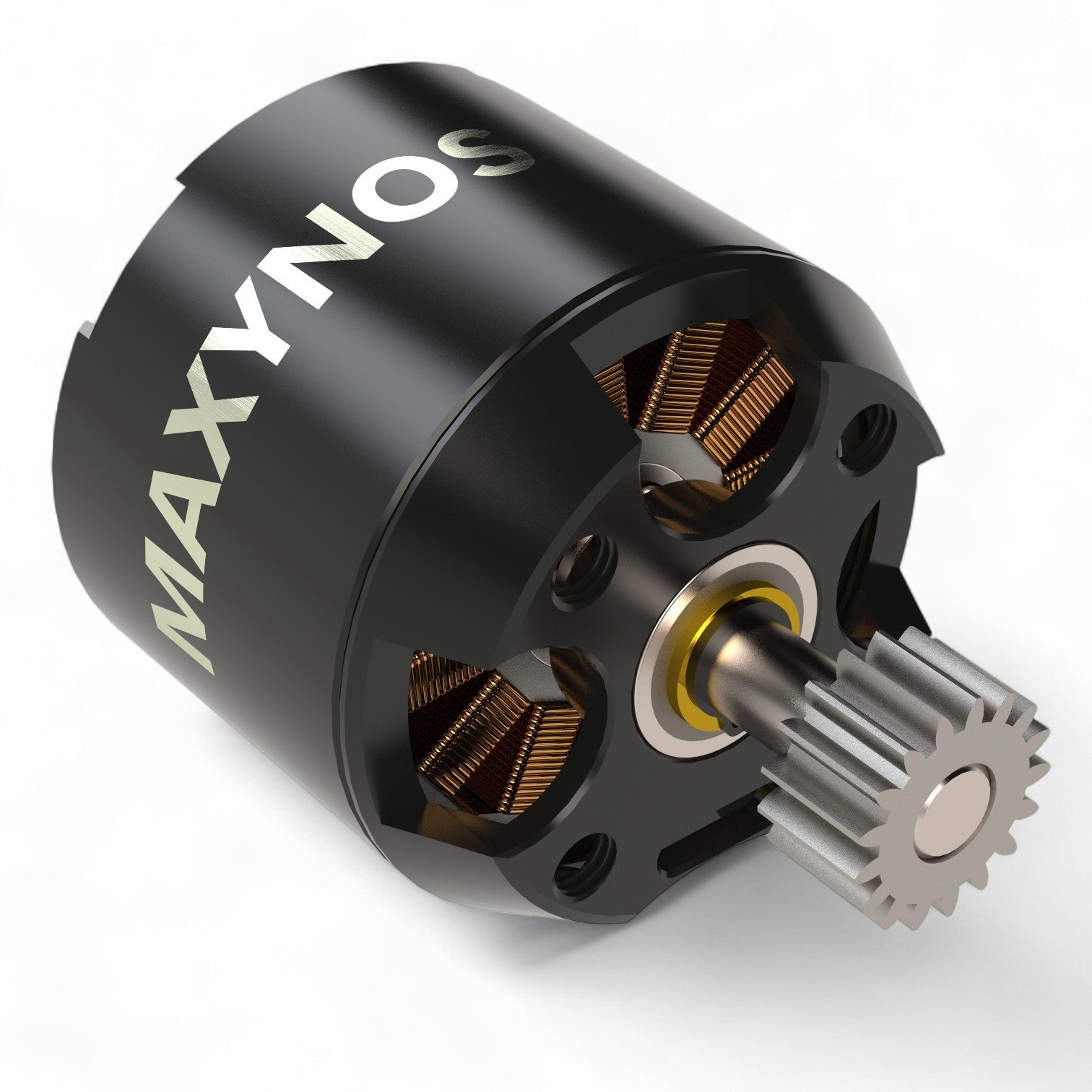

High-Purity Copper Windings

The 12-slot stator is wound with high-purity copper coils for superior conductivity and reduced energy loss. Engineered with precise KV rating calibration, giving you accurate speed and torque output tailored to your needs.

FAQs

Do you ship your products Worldwide?

Yes. We ship worldwide and process most orders within 24 hours for fast and secure delivery.

What makes the MAXYNOS THOR 2830 motor unique?

The THOR 2830 features a titanium high-power outrunner design with a planetary gearbox. It combines N52 magnets and high-purity copper windings, giving it maximum torque, higher efficiency, and consistent performance for demanding projects.

What gearbox ratios are available for the THOR 2830?

This motor comes in three gearbox ratios: 14:1 (13.73 exact), 19:1 (19.20 exact), and 51:1 (50.89 exact). These options allow you to balance speed and torque depending on your application.

Which ESC is recommended for the THOR 2830?

For safe and efficient operation, we recommend the Maxynos 45A ESC or higher. This ensures compatibility with the motor’s voltage and current ratings for both the 1120KV and 880KV versions.

What applications is the THOR 2830 best suited for?

The THOR 2830 is ideal for robotics, RC vehicles, drones, and smart automation projects. Its planetary gearbox provides smooth acceleration and precise control under load.

What is the weight of the THOR 2830 motor?

The weight depends on the gearbox ratio. The 14:1 version is 166g, the 19:1 version is 167g, and the 51:1 version is 185g — all with an excellent size-to-power ratio.
