maxynos thor 2318
maxynos thor geared brushless dc motor
Maxynos thor 2318 motor dimensions
THOR 2318 Brushless Gear Motor
Maxynos thor 2318 motor
THOR 2318 Brushless Gear Motor
THOR 2318 Brushless Gear Motor
THOR 2318 Brushless Gear Motor
THOR 2318 Brushless Gear Motor

THOR 2318 Brushless Gear Motor

The MAXYNOS THOR 2318 is the most compact and lightweight member of the THOR Series — a high-efficiency 23 mm Brushless DC Outrunner Motor integrated with a 24 mm precision planetary gearbox. Engineered for applications where space, power, and performance must coexist, this motor delivers exceptional torque and control in a remarkably small footprint.

Available in two kV ratings, the 1250 kV version is optimized for speed and responsiveness, while the 625 kV (87 W) configuration provides stronger torque output and superior efficiency under sustained load. The THOR 2318 is also offered in three gear ratios — 1:19, 1:27, and 1:51 — giving designers the flexibility to fine-tune speed and torque for their specific robotic or automation systems.

Despite its miniature size, this motor is built with an outrunner rotor design, ensuring smooth operation, high torque density, and excellent heat dissipation. The metal planetary gearbox provides precise motion control, low noise, and impressive durability.
With a total weight of just 70 g (1:19 & 1:27) and 77 g (1:51), the THOR 2318 is the perfect choice for compact robots, smart devices, and advanced automation mechanisms that require power without compromise.

Key Features:

  • 23 mm brushless DC outrunner motor with 24 mm all metal planetary gearbox

  • Available in 1250 kV and 625 kV (87 W) configurations

  • Gear ratio options: 1:19, 1:27, 1:51

  • Outer rotor design for maximum torque in compact dimensions

  • Lightweight design: 70 g (1:19 & 1:27), 77 g (1:51)

  • Quiet, efficient, and reliable for small-scale robotics and automation systems

MAXYNOS THOR Series is your ultimate choice when it comes to maximum power, torque, speed, and compact size.

Gear Ratio
Gear Ratio: 1:19
KV Rating
KV Rating: 1250KV
$49.99
Shipping calculated at checkout.

Pairs well with ESC

Additional Product details

Find more about the Product

Specifications:
Specifications:

1250KV Motor Specifications:

  • Rated Voltage: DC 7–15V (4SLipo)
  • Power: 86W
  • No-Load Current: 0.4A
  • Stall Current: 10A
  • Number of Poles: 14
  • Internal Resistance: 0.13 Ohm
  • Connector: 3.5mm bullet plug
  • Recommended Controller: Maxynos Bidirectional 45A ESC

625KV Motor Specifications:

  • Rated Voltage: DC 7–15V
  • Power: 60W
  • No-Load Current: 0.2A
  • Stall Current: 6A
  • Number of Poles: 14
  • Internal Resistance: 0.18 Ohm
  • Connector: 3.5mm bullet plug
  • Recommended Controller: Maxynos Bidirectional 45A ESC

Planetary Gearbox – Exact Reduction Ratio:

  • Gear ratio 19:1 → Exact reduction ratio 19.20:1
  • Gear ratio 27:1 → Exact reduction ratio 26.85:1
  • Gear ratio 51:1 → Exact reduction ratio 50.89:1

Planetary Gear Motor Weight:

  • THOR 2318 gear ratio 19:1 weight = 70 g
  • THOR 2318 gear ratio 27:1 weight = 70 g
  • THOR 2318 gear ratio 51:1 weight = 77 g

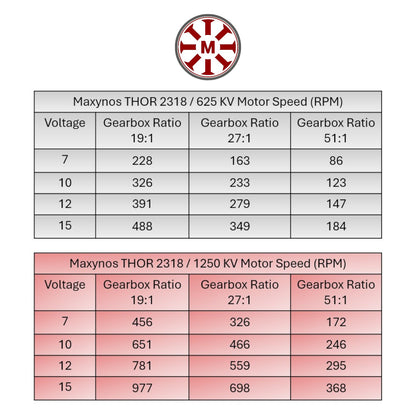

Planetary Gearbox Speed (RPM) Calculations:

  • Motor Speed (RPM) = (Motor KV value) × (Applied Voltage) → Example: 1250KV Motor speed at 14V → 1000 × 14 = 17,500 RPM
  • Gearbox Speed (RPM) = Motor speed ÷ Exact reduction ratio → Example: Gear speed (RPM) at Ratio 27:1 & 14 Volts → 17,500 ÷ 26.85 = 651 RPM
Design
Design

Maxynos-2318-Gearbox-19.27.step

Maxynos-2318-Gearbox-51.step

Compatible With
Compatible With

Maxynos 45A ESC

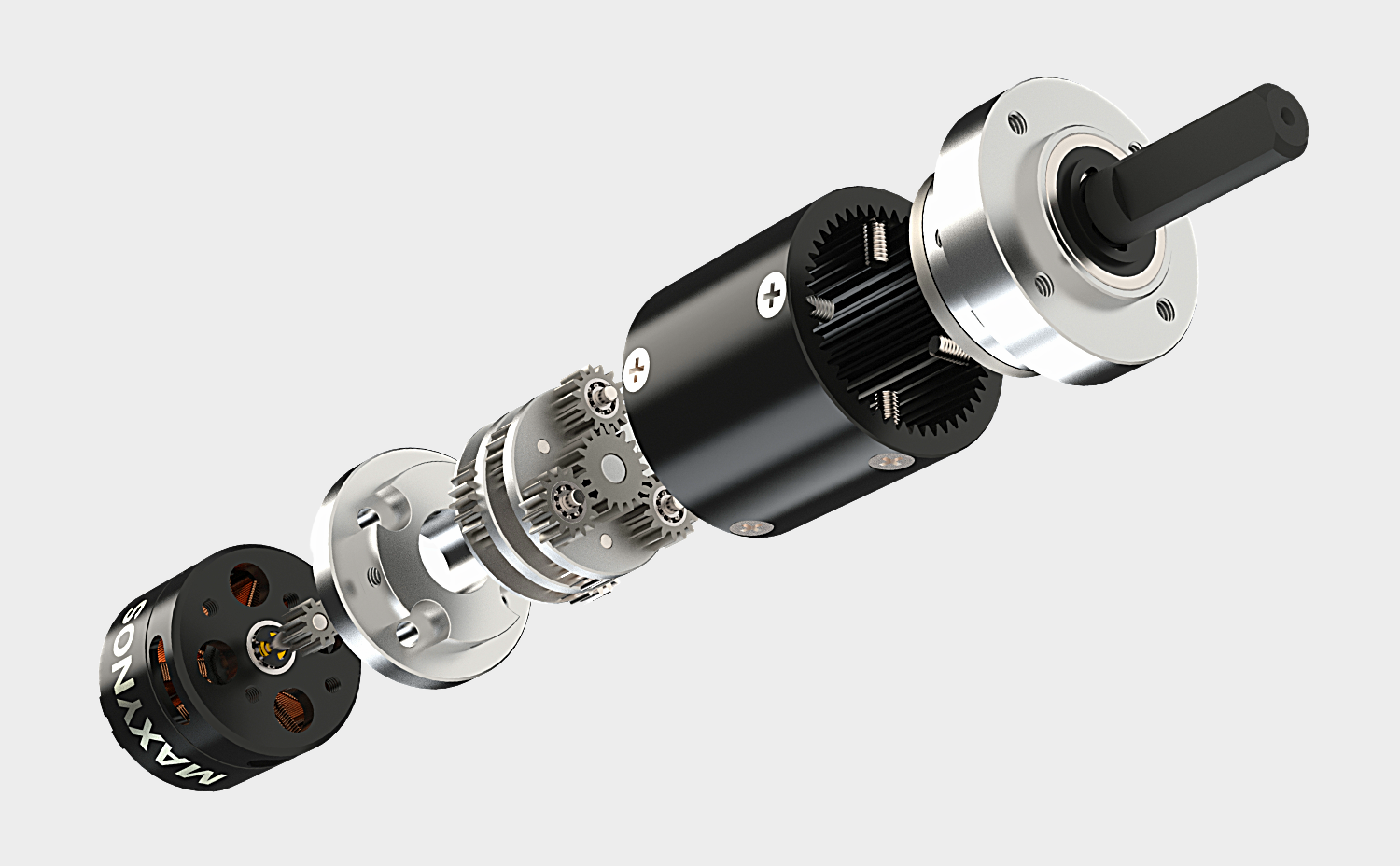

Inside THOR 2318

THOR 2318 comes equipped with a premium planetary gearbox, providing smooth acceleration, minimal backlash, and enhanced load handling — making it the ideal choice for robotics, RC vehicles, and smart automation projects.

THOR series offers an exceptional size-to-power ratio, peak torque output, and rugged reliability — engineered for creators, builders, and professionals who demand nothing but the best.

High Power Outrunner

Next-Generation Brushless Motor Technology Replaces traditional brushed motors with a more efficient, longer-lasting solution. Offers reduced maintenance, lower heat, and higher reliability over time.
High-Torque OutRunner Design: Featuring an external rotor that spins around the stator, this motor generates significantly higher torque at lower speeds. This design improves thermal stability and energy efficiency, eliminating the need for bulky gearing and simplifying your project's design.

Motor Dimensions in mm

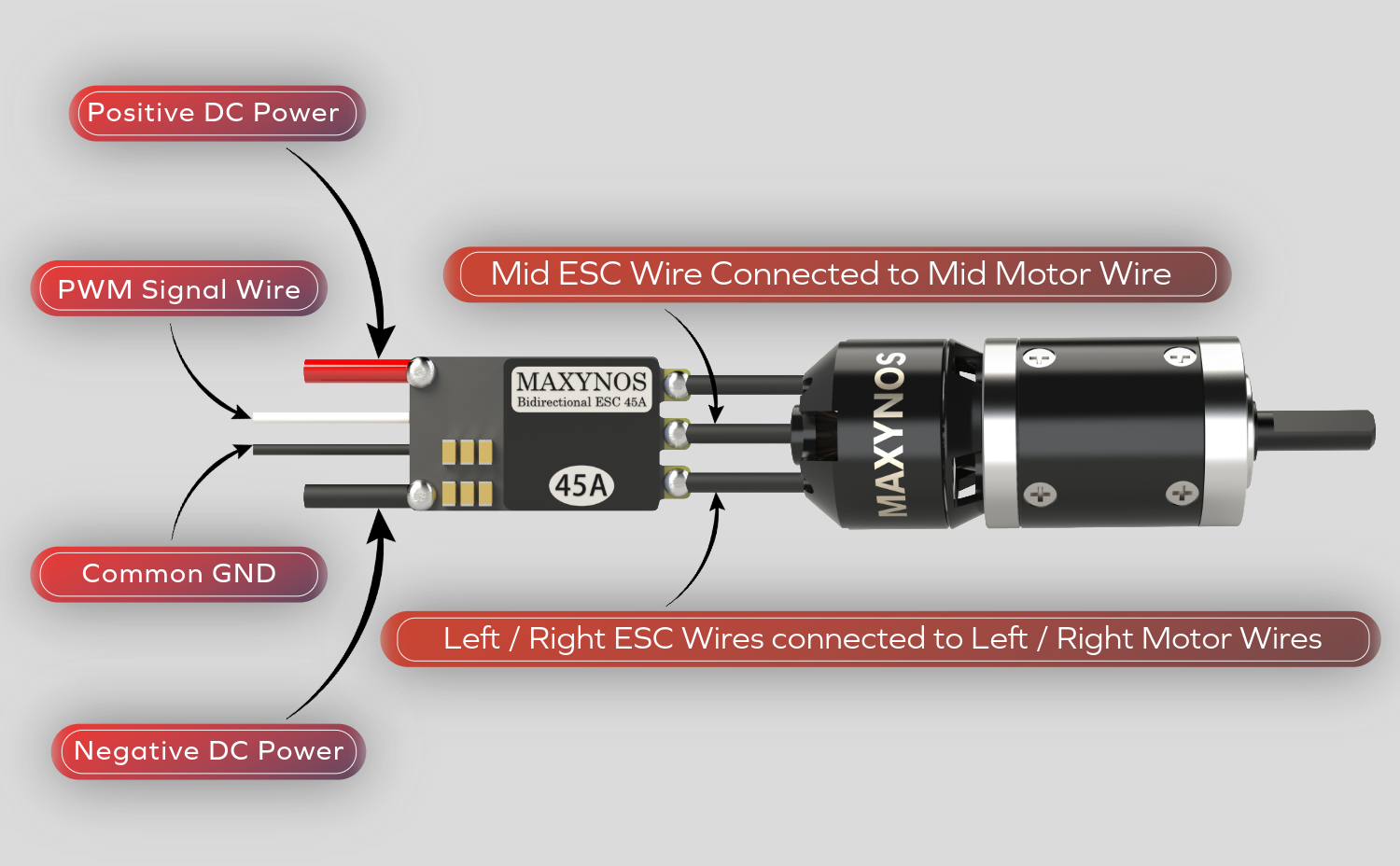

Motor Connection Guide

Connecting your brushless motor to the ESC is simple: both components have three wires.

  • The middle wire of the motor must always connect to the middle wire of the ESC. Do not change this connection.
  • You can swap the left and right wires if you want to reverse the motor’s rotation direction.

Note: Only one motor can be connected to one ESC. Therefore, each motor requires a dedicated ESC.

FAQs

Do you ship your products Worldwide?

Yes. We ship worldwide and process most orders within 24 hours for fast and secure delivery.

What makes the THOR 2318 motor different from regular brushless motors?

The THOR 2318 is a high-power outrunner brushless DC motor with an integrated planetary gearbox. This design gives it higher torque, better load handling, and a stronger size-to-power ratio compared to standard brushless motors.

What gear ratios are available for the THOR 2318?

You can choose between 19:1, 27:1, and 51:1 planetary gear ratios. Each ratio allows you to balance torque and speed depending on whether you need faster rotation or stronger pulling power.

Can I use the THOR 2318 motor with Arduino or other MCUs?

Yes, the THOR 2318 works seamlessly with popular controllers like Arduino, ESP32, and similar MCUs when paired with a compatible ESC such as the Maxynos 45A ESC. This makes it ideal for robotics and automation projects.

What are the main applications of the THOR 2318 planetary gear motor?

The THOR 2318 is widely used in robotics, RC vehicles, automation projects, drones, and smart engineering builds. Its planetary gearbox ensures smooth motion with minimal backlash, making it reliable for precision applications.

What connectors and accessories come with the THOR 2318?

The motor comes with 3.5 mm bullet connectors for easy installation. For best performance, it is recommended to use it with the Maxynos 45A bidirectional ESC for reliable throttle response and bidirectional control.
