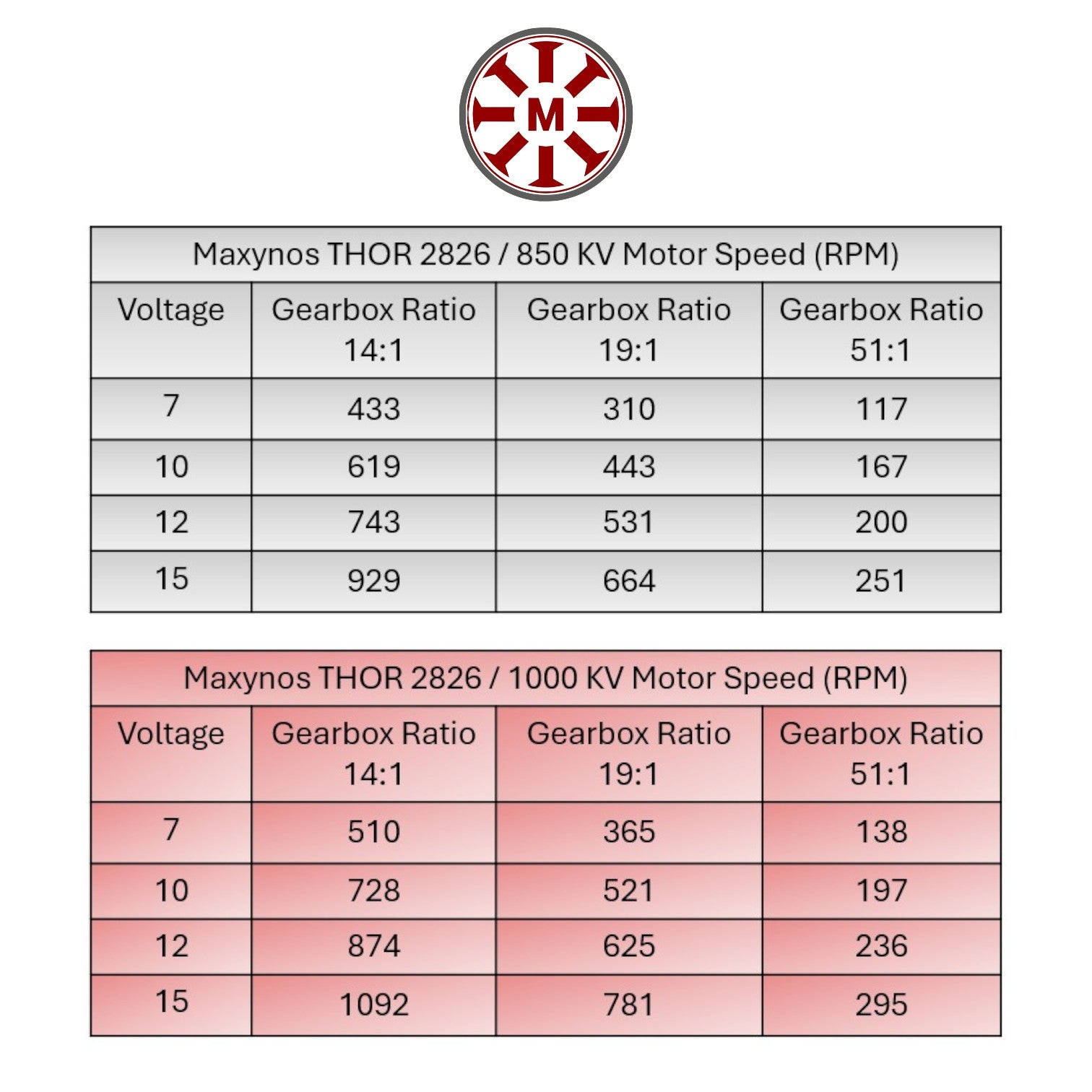

maxynos thor 2826 speed RPM chart
maxynos thor 2826
THOR 2826 Brushless Gear Motor
THOR 2826 Brushless Gear Motor
THOR 2826 Brushless Gear Motor
THOR 2826 Brushless Gear Motor

THOR 2826 Brushless Gear Motor

The MAXYNOS THOR 2826 is a compact and efficient 28 mm Brushless DC Outrunner Motor equipped with a precision-engineered planetary gearbox, designed to deliver excellent torque, stability, and control in a lightweight form. As part of the premium THOR Series, this motor offers exceptional reliability and performance for robotics, automation, and intelligent drive systems that require both power and compactness.

Available in two kV configurations, the 1000 kV (260 W) model provides faster rotational speed and responsive performance, while the 850 kV (240 W) version is optimized for stronger torque and greater energy efficiency. Combined with three gear ratios (1:14, 1:19, and 1:51), the THOR 2826 offers precise tuning for various mechanical and robotic applications.

Featuring an outrunner rotor design, this motor achieves high torque density, smooth motion, and efficient cooling even during continuous operation. The metal planetary gearbox ensures minimal backlash, quiet operation, and extended durability — making the THOR 2826 a perfect choice for compact robotic platforms, automation mechanisms, and motion control systems where precision matters.

Key Features:

  • 28 mm high-performance Brushless DC outrunner motor with planetary gearbox

  • Available in 1000 kV (260 W) and 850 kV (240 W) configurations

  • Gear ratio options: 1:14, 1:19, 1:51

  • Outer rotor design for maximum torque and power efficiency

  • Low-noise and stable operation under continuous load

  • Ideal for robotics, automation, and precision motion applications

MAXYNOS THOR Series is your ultimate choice when it comes to maximum power, torque, speed, and compact size.

Gearbox Ratio
Gearbox Ratio: 1:14
KV Rating
KV Rating : 1000KV
$55.00
Shipping calculated at checkout.

Pairs well with ESC

Additional Product details

Find more about the Product

Specifications:
Specifications:

1000KV Motor Specifications:

  • Rated Voltage: DC 7–15V
  • Power: 260W
  • No-Load Current: 0.9A
  • Stall Current: 21A
  • Number of Poles: 14
  • Internal Resistance: 0.152 Ohm
  • Connector: 3.5mm bullet plug
  • Recommended Controller: Maxynos 45A ESC or above

850KV Motor Specifications:

  • Rated Voltage: DC 7–15V
  • Power: 240W
  • No-Load Current: 0.6A
  • Stall Current: 19A
  • Number of Poles: 14
  • Internal Resistance: 0.189 Ohm
  • Connector: 3.5mm bullet plug
  • Recommended Controller: Maxynos 45A ESC or above

Planetary Gearbox – Exact Reduction Ratio:

  • Gear ratio 14:1 → Exact reduction ratio 13.73:1
  • Gear ratio 19:1 → Exact reduction ratio 19.20:1
  • Gear ratio 51:1 → Exact reduction ratio 50.89:1

Planetary Gear Motor Weight:

  • THOR 2826 gear ratio 14:1 weight = 153 g
  • THOR 2826 gear ratio 19:1 weight = 153 g
  • THOR 2826 gear ratio 51:1 weight = 172 g

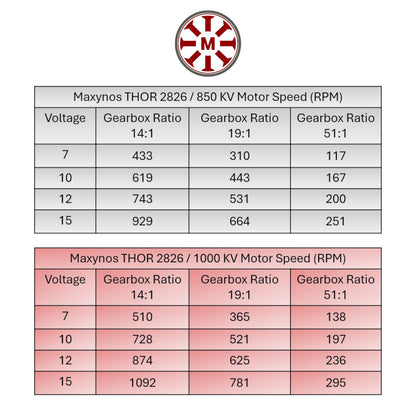

Planetary Gearbox Speed (RPM) Calculations:

  • Motor Speed (RPM) = (Motor KV value) × (Applied Voltage) → Example: 1000KV Motor speed at 14V → 1000 × 14 = 14,000 RPM
  • Gearbox Speed (RPM) = Motor speed ÷ Exact reduction ratio → Example: Gear speed (RPM) at Ratio 51:1 & 14 Volts → 14,000 ÷ 50.89 = 275 RPM
Design
Design
Compatible With
Compatible With

Maxynos 45A ESC

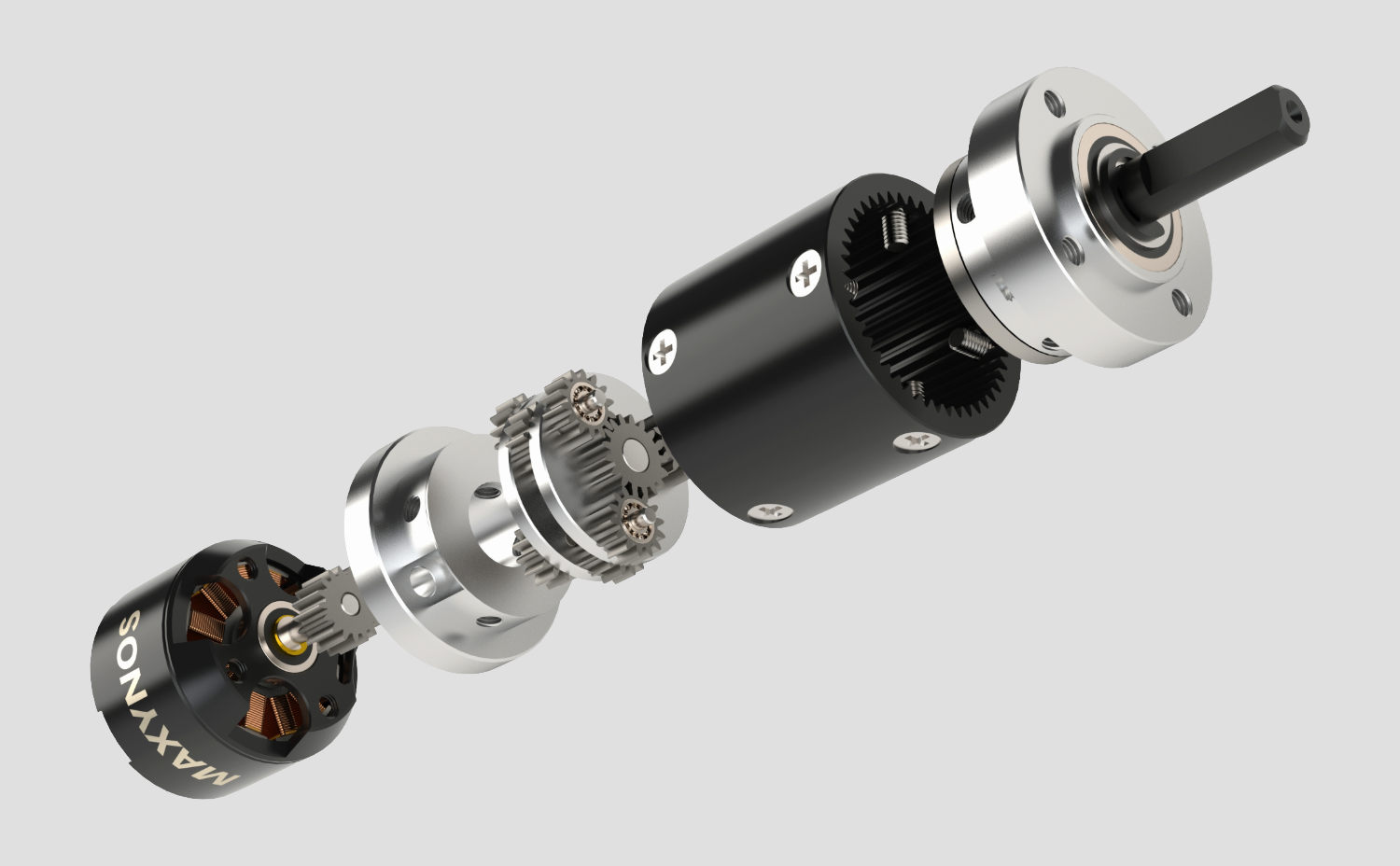

Inside Maxynos THOR 2826

The THOR 2826 equipped with a premium planetary gearbox, providing smooth acceleration, minimal backlash, and enhanced load handling — making it the ideal choice for robotics, RC vehicles, and smart automation projects.

THOR series offers an exceptional size-to-power ratio, peak torque output, and rugged reliability — engineered for creators, builders, and professionals who demand nothing but the best.

High Power Outrunner

Next-Generation Brushless Motor Technology Replaces traditional brushed motors with a more efficient, longer-lasting solution. Offers reduced maintenance, lower heat, and higher reliability over time.
High-Torque OutRunner Design: Featuring an external rotor that spins around the stator, this motor generates significantly higher torque at lower speeds. This design improves thermal stability and energy efficiency, eliminating the need for bulky gearing and simplifying your project's design.

Motor Dimensions in mm

Motor Connection Guide

Connecting your brushless motor to the ESC is simple: both components have three wires.

  • The middle wire of the motor must always connect to the middle wire of the ESC. Do not change this connection.
  • You can swap the left and right wires if you want to reverse the motor’s rotation direction.

Note: Only one motor can be connected to one ESC. Therefore, each motor requires a dedicated ESC.

FAQs

Do you ship your products Worldwide?

Yes. We ship worldwide and process most orders within 24 hours for fast and secure delivery.

What makes the MAXYNOS THOR 2826 different from other brushless motors?

The THOR 2826 comes with a premium planetary gearbox, high-grade N52 magnets, and copper windings. This design delivers maximum torque, smooth acceleration, and reliable long-term performance, making it ideal for robotics, RC vehicles, and automation projects.

Which gearbox ratios are available for the THOR 2826?

This motor is available in three gearbox ratios: 14:1 (13.73 exact), 19:1 (19.20 exact), and 51:1 (50.89 exact). These options let you choose the right balance of speed and torque for your project.

What controller should I use with the THOR 2826 motor?

We recommend using the Maxynos 45A ESC or above for stable and safe operation. It ensures compatibility with the motor’s voltage and current requirements.

What applications is the THOR 2826 best suited for?

The THOR 2826 is perfect for robotics, smart automation, and RC vehicles. Its high torque and precision make it suitable for demanding mechanical projects.

What is the weight and size of the THOR 2826 motor?

The weight depends on the gearbox ratio. The 14:1 and 19:1 versions weigh 153 g, while the 51:1 version weighs 172 g. All models are compact with an excellent size-to-power ratio.
