The MAXYNOS THOR 2830 (Titan High-power Outrunner) is a premium 28 mm Brushless DC Outrunner Motor paired with a precision planetary gearbox, delivering outstanding torque, stability, and efficiency in a compact design. Built for engineers and innovators who demand reliability and control, the THOR 2830 combines advanced motor engineering with durable all-metal gearing to ensure consistent performance across various robotic and automation applications.

This model is available in two kV ratings — 1120 kV (380 W) for higher-speed and dynamic operations, and 880 kV (340 W) for enhanced torque and energy efficiency under continuous load. With three available gear ratios (1:14, 1:19, and 1:51), the THOR 2830 offers versatile speed-to-torque configurations suited for intelligent drive systems, robotic joints, and precision mechanisms.

Featuring an outrunner rotor design that maximizes torque output while maintaining compact dimensions, this motor achieves low vibration, smooth rotation, and excellent thermal balance during prolonged use. The metal planetary gearbox ensures efficient torque transfer, minimal backlash, and long-term durability — making the THOR 2830 a dependable choice for next-generation robotics and automated systems.

Key Features:

  • 28 mm high-efficiency Brushless DC outrunner motor with precision planetary gearbox

  • Available in 1120 kV (380 W) and 880 kV (340 W) versions

  • Gear ratio options: 1:14, 1:19, 1:51

  • Outer rotor design for maximum torque and smooth operation

  • Low-noise, high-stability performance under load

  • Ideal for robotics, automation, and high-precision mechanical projects

MAXYNOS THOR Series is your ultimate choice when it comes to maximum power, torque, speed, and compact size.

Gear Ratio
Gear Ratio: 1:14 Ratio
KV Rating
KV Rating: 1120KV
$59.99
Shipping calculated at checkout.

Pairs well with ESC

Additional Product details

Find more about the Product

Specifications:
Specifications:

1120KV Motor Specifications:

  • Rated Voltage: DC 7–15V
  • Power: 380W
  • No-Load Current: 1.2A
  • Stall Current: 26A
  • Number of Poles: 14
  • Internal Resistance: 0.068 Ohm
  • Connector: 3.5mm bullet plug
  • Recommended Controller: Maxynos 45A ESC or above

880KV Motor Specifications:

  • Rated Voltage: DC 7–18V
  • Power: 340W
  • No-Load Current: 0.8A
  • Stall Current: 22A
  • Number of Poles: 14
  • Internal Resistance: 0.108 Ohm
  • Connector: 3.5mm bullet plug
  • Recommended Controller: Maxynos 45A ESC or above

Planetary Gearbox - Exact Reduction Ratio:

  • Gear ratio 14:1 → Exact reduction ratio 13.73:1
  • Gear ratio 19:1 → Exact reduction ratio 19.20:1
  • Gear ratio 51:1 → Exact reduction ratio 50.89:1

Planetary Gear Motor Weight:

  • THOR 2830 gear ratio 14:1 weight = 166g
  • THOR 2830 gear ratio 19:1 weight = 167g
  • THOR 2830 gear ratio 51:1 weight = 185g

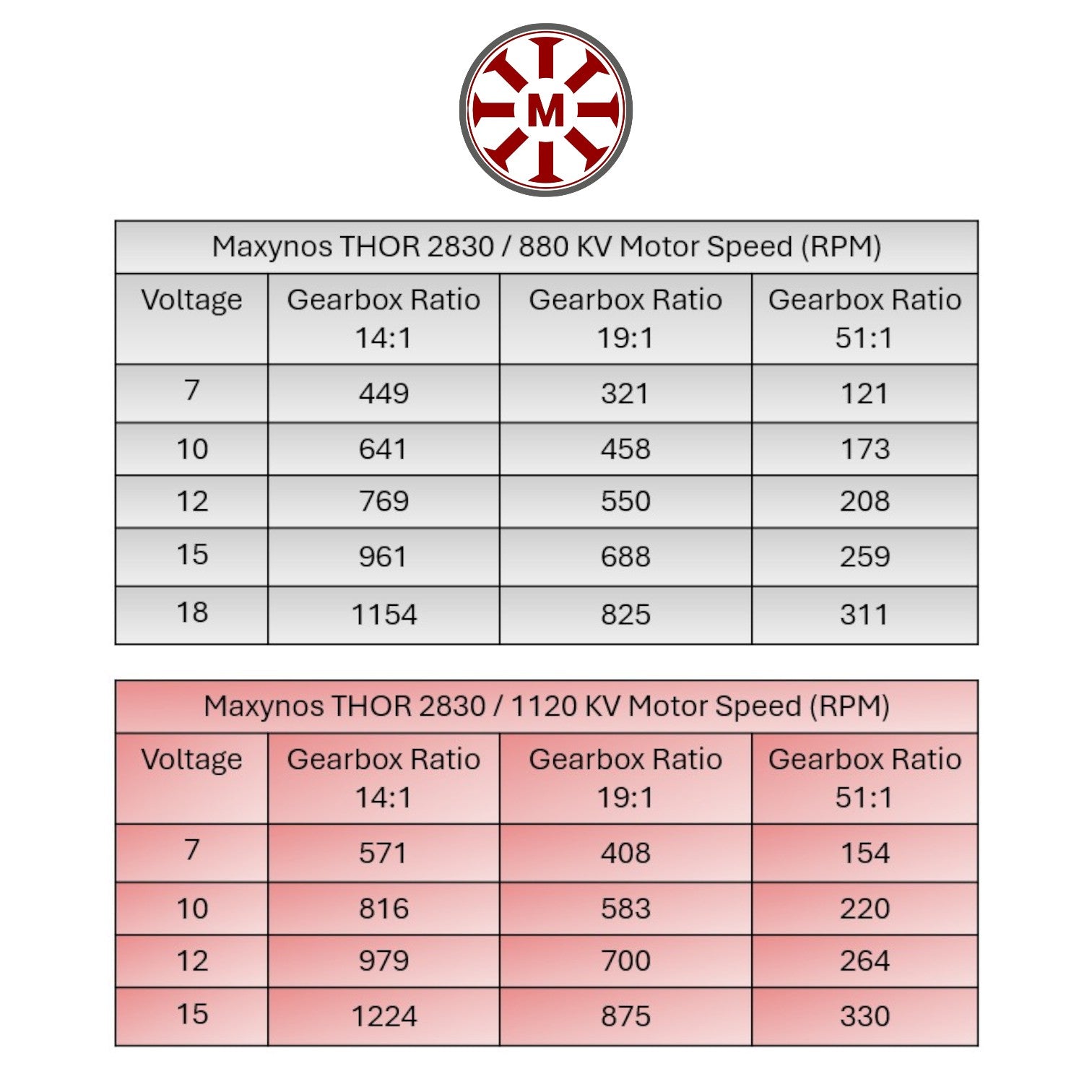

Planetary Gearbox Speed (RPM) Calculations:

  • Motor Speed (RPM) = (Motor KV value) × (Applied Voltage) → Example: 1120KV Motor speed at 14.8V → 1120 × 14.8 = 16,576 RPM
  • Gearbox Speed (RPM) = Motor speed ÷ Exact reduction ratio → Example: Gear speed (RPM) at Ratio 14:1 & 14.8 Volts → 16,576 ÷ 13.73 = 1207 RPM
Design
Design

Maxynos ratio 51

Maxynos ratio 14, 19

Compatible With
Compatible With

maxynos 70A ESC

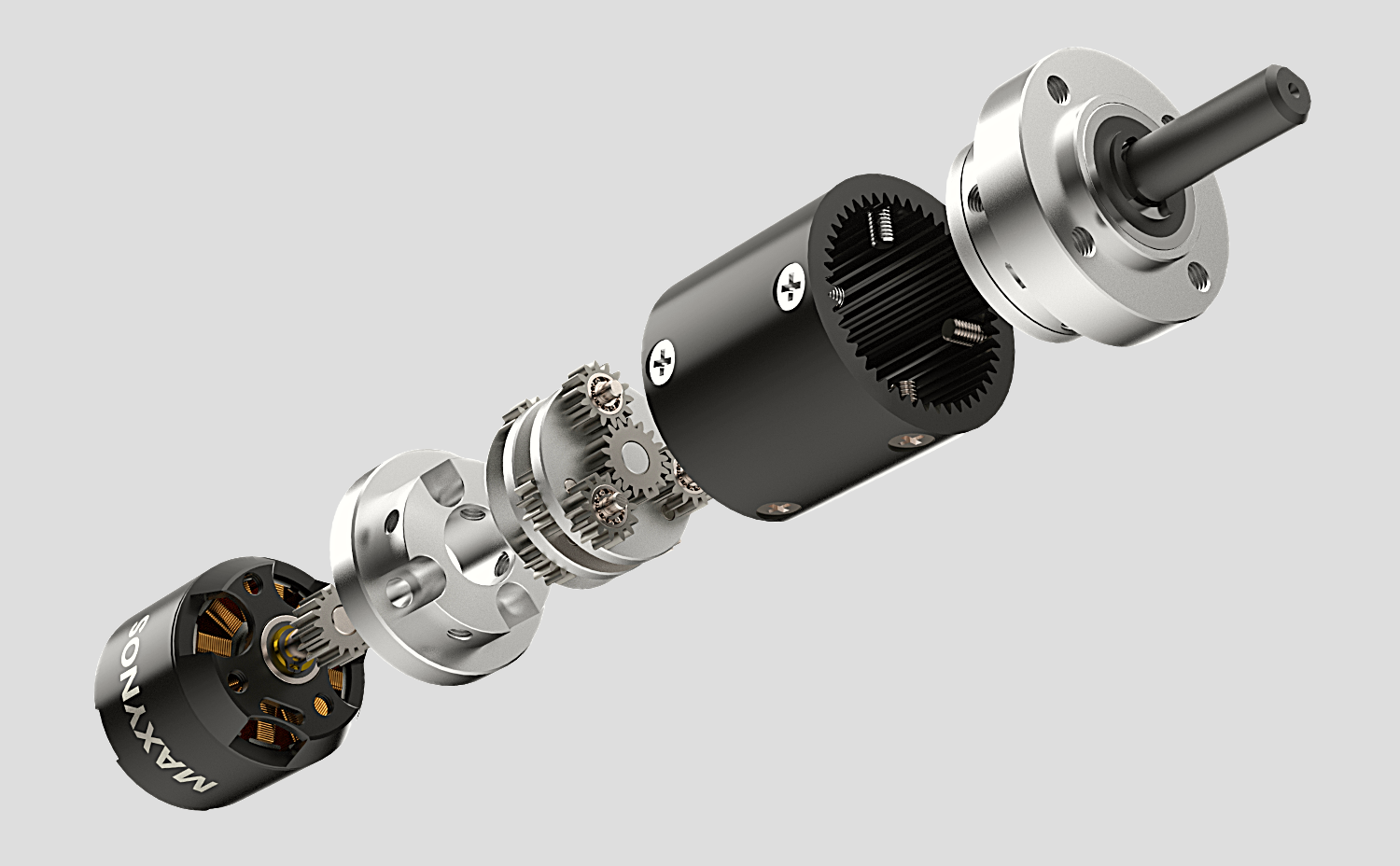

Inside THOR 2830

THOR 2830 comes equipped with a premium planetary gearbox, providing smooth acceleration, minimal backlash, and enhanced load handling, making it the ideal choice for robotics, RC vehicles, and smart automation projects.

THOR series offers an exceptional size-to-power ratio, peak torque output, and rugged reliability — engineered for creators, builders, and professionals who demand nothing but the best.

High Power Outrunner

Next-Generation Brushless Motor Technology Replaces traditional brushed motors with a more efficient, longer-lasting solution. Offers reduced maintenance, lower heat, and higher reliability over time.
High-Torque OutRunner Design: Featuring an external rotor that spins around the stator, this motor generates significantly higher torque at lower speeds. This design improves thermal stability and energy efficiency, eliminating the need for bulky gearing and simplifying your project's design.

Motor Dimensions in mm

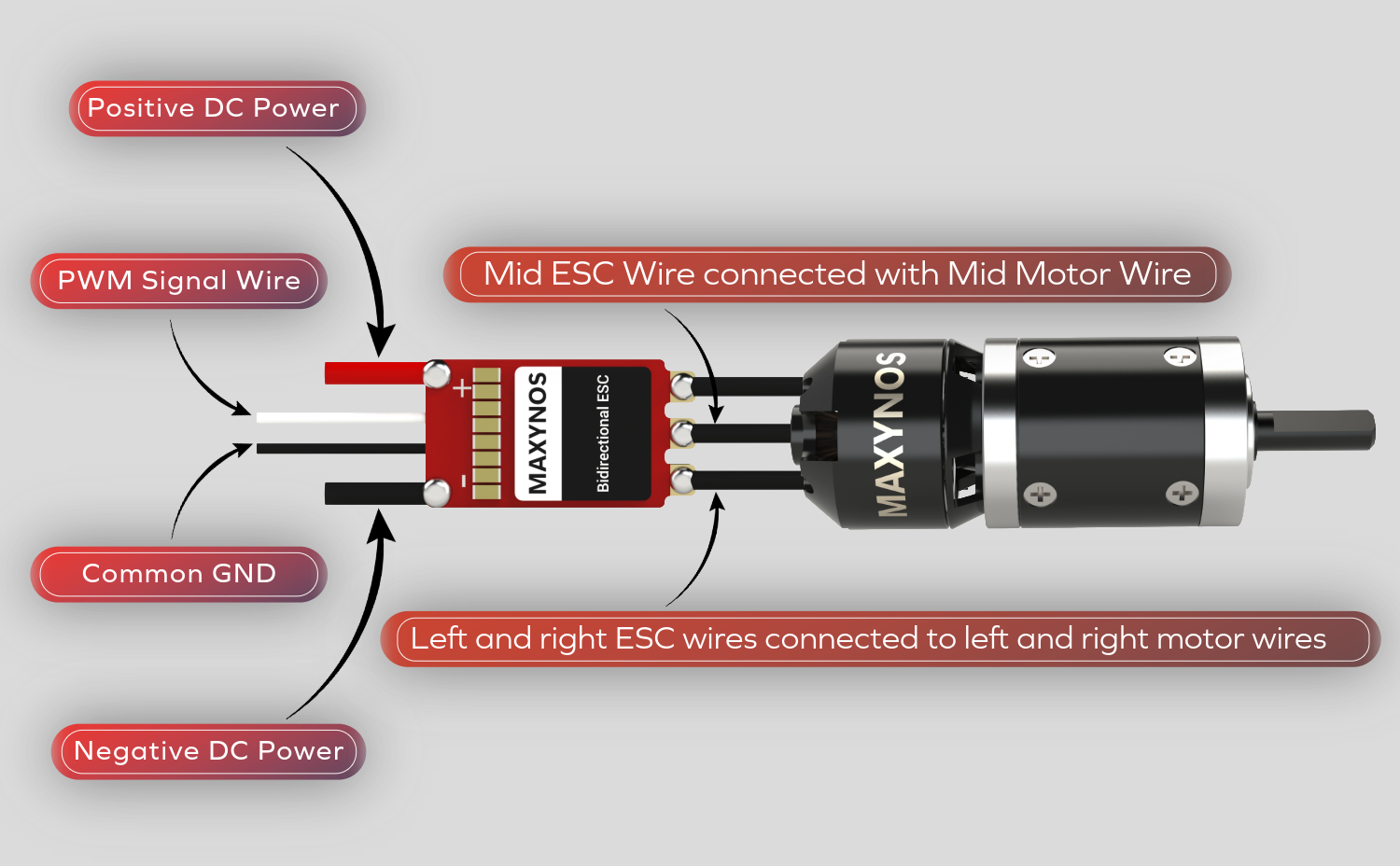

Motor Connection Guide

Connecting your brushless motor to the ESC is simple: both components have three wires.

  • Connect each of the three motor wires to the three ESC output wires — left, middle, and right.
  • The middle wire of the motor must always connect to the middle wire of the ESC. Do not change this connection.
  • You can swap the left and right wires if you want to reverse the motor’s rotation direction.

FAQs

Do you ship your products Worldwide?

Yes. We ship worldwide and process most orders within 24 hours for fast and secure delivery.

What makes the MAXYNOS THOR 2830 motor unique?

The THOR 2830 features a titanium high-power outrunner design with a planetary gearbox. It combines N52 magnets and high-purity copper windings, giving it maximum torque, higher efficiency, and consistent performance for demanding projects.

What gearbox ratios are available for the THOR 2830?

This motor comes in three gearbox ratios: 14:1 (13.73 exact), 19:1 (19.20 exact), and 51:1 (50.89 exact). These options allow you to balance speed and torque depending on your application.

Which ESC is recommended for the THOR 2830?

For safe and efficient operation, we recommend the Maxynos 45A ESC or higher. This ensures compatibility with the motor’s voltage and current ratings for both the 1120KV and 880KV versions.

What applications is the THOR 2830 best suited for?

The THOR 2830 is ideal for robotics, RC vehicles, drones, and smart automation projects. Its planetary gearbox provides smooth acceleration and precise control under load.

What is the weight of the THOR 2830 motor?

The weight depends on the gearbox ratio. The 14:1 version is 166g, the 19:1 version is 167g, and the 51:1 version is 185g — all with an excellent size-to-power ratio.
