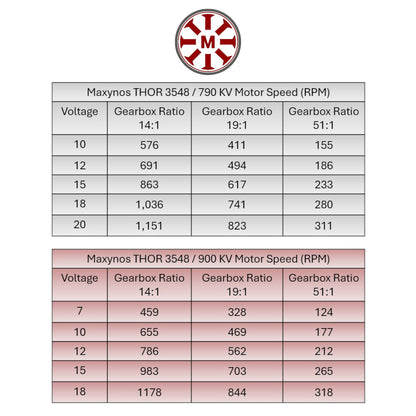

Motor Speed RPM for THOR 3548
Motor Dimensions in mm

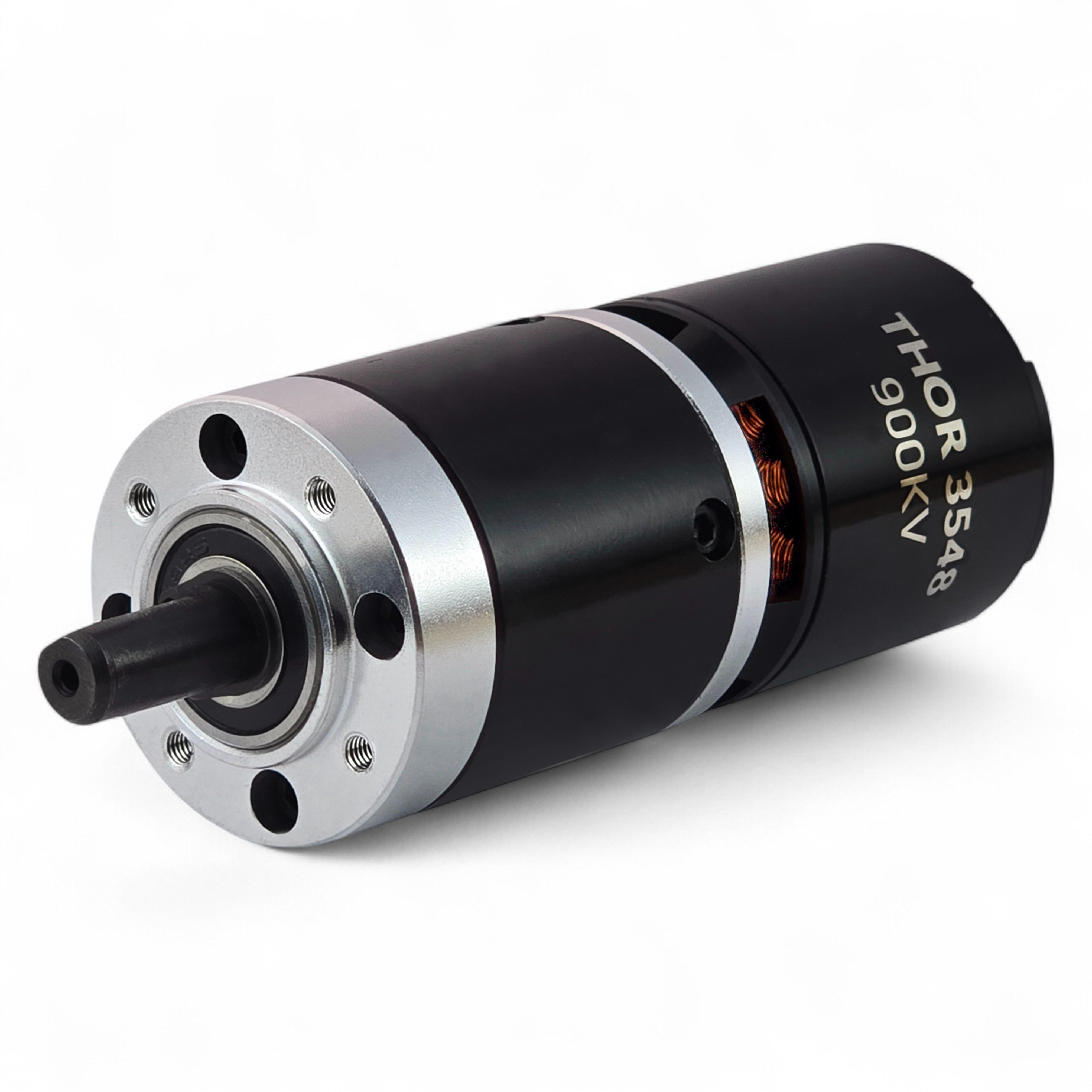

Maxynos THOR 3548 900KV motor

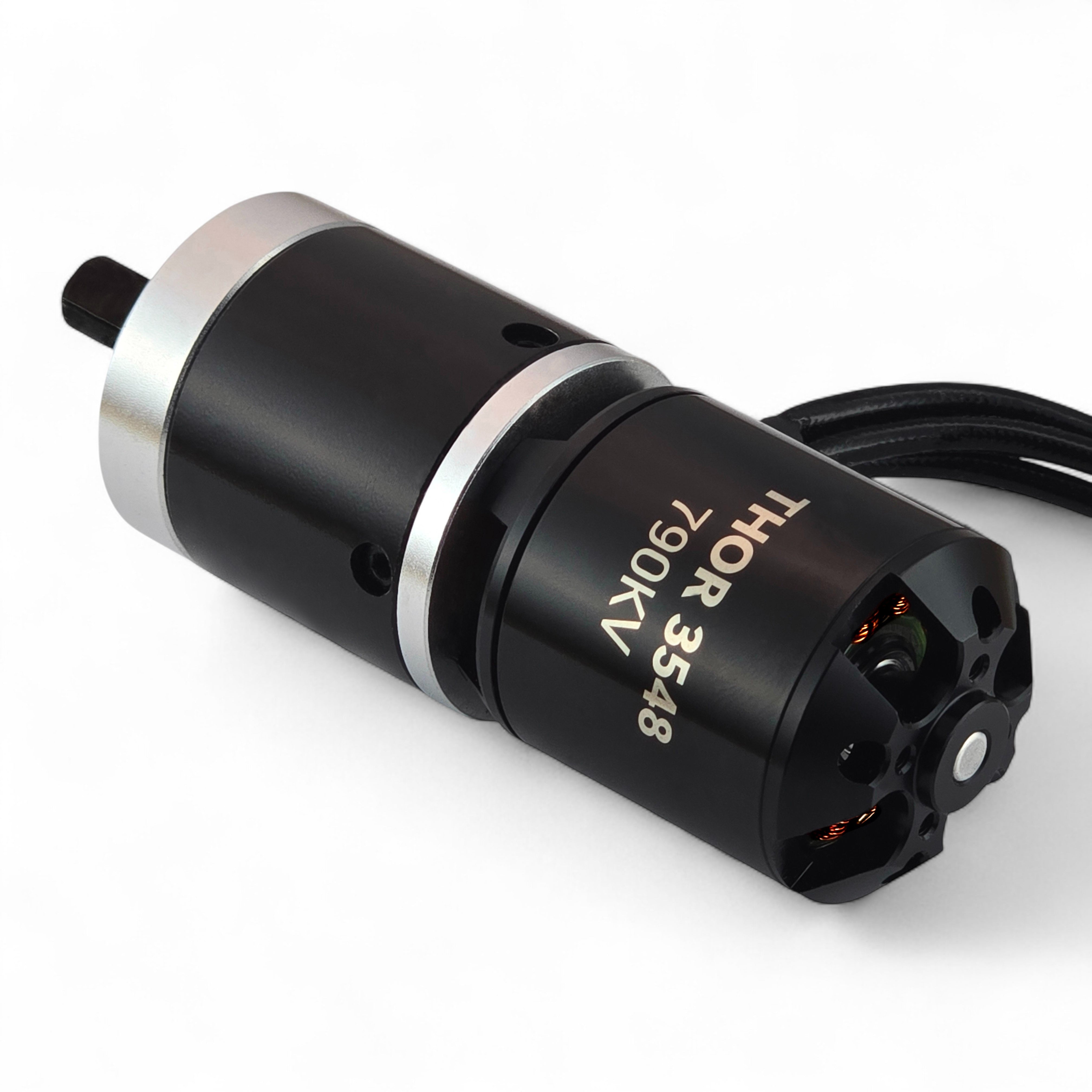

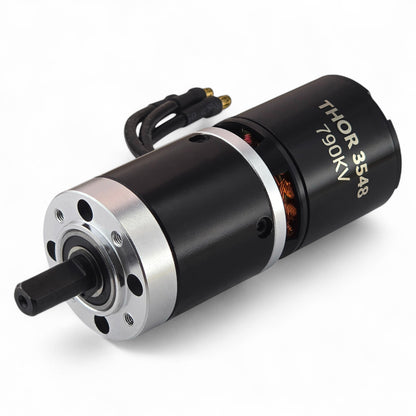

Maxynos THOR 3548 790KV
Maxynos THOR 3548
Maxynos THOR 3548
Maxynos THOR 3548

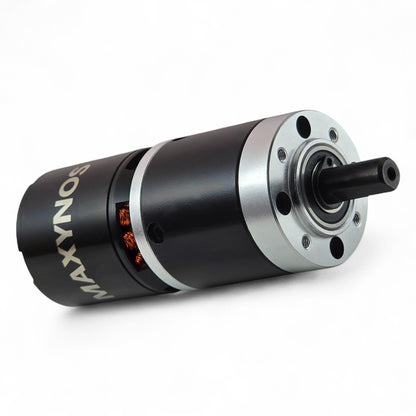

THOR 3548 Brushless Gear Motor

The MAXYNOS THOR 3548 (Titan High-power Outrunner) is a premium 35mm Brushless DC Outrunner Motor equipped with a 36mm precision planetary gearbox, engineered for superior torque and efficiency in demanding applications. Designed for professionals who require unmatched power, durability, and control, this motor stands at the top of the MAXYNOS lineup.

The THOR 3548 is available in two kV ratings — 900kV (1000W) for higher speed and dynamic performance, and 790kV (840W) for optimized torque and efficiency under load. Combined with three available gear ratios (1:14, 1:19, and 1:51), this motor provides flexibility for a wide range of mechanical and robotic systems.

Featuring an outrunner rotor design that places the rotor outside the motor core, it delivers exceptional torque output, stable operation, and superior thermal balance. The all metal planetary gearbox ensures smooth torque transfer, low noise, and long service life — making the THOR 3548 ideal for robotics, automation, and heavy-duty mobility platforms.

Key Features:

  • 35mm high-power Brushless DC outrunner motor with 36mm planetary gearbox

  • Available in 900kV (1000W) and 790kV (840W) configurations

  • Gear ratio options: 1:14, 1:19, 1:51

  • Outer rotor design for maximum torque and efficiency

  • Smooth, precise motion with high durability under heavy load

  • Ideal for robotics, automation systems, and high-torque drive units

MAXYNOS THOR series is your definite choice when it comes to maximum power, torque, speed, and compact size.

Gearbox Ratio
Gearbox Ratio: 1:14 Ratio
KV Rating
KV Rating: 900KV
$69.99
Shipping calculated at checkout.

Pairs well with ESC

Additional Product details

Find more about the Product

Specifications:
Specifications:

900KV Motor Specifications:

  • Rated Voltage: DC 7–18V
  • Power: 1000W
  • No-Load Current: 2.2A
  • Stall Current: 60A
  • Number of Poles: 14
  • Internal Resistance: 0.033 Ohm
  • Connector: 3.5mm bullet plug

790KV Motor Specifications:

  • Rated Voltage: DC 10–20V
  • Power: 840W
  • No-Load Current: 2.0A
  • Stall Current: 50A
  • Number of Poles: 14
  • Internal Resistance: 0.051 Ohm
  • Connector: 3.5mm bullet plug

Planetary Gearbox – Exact Reduction Ratio:

  • Gear ratio 14:1 → Exact reduction ratio 13.73:1
  • Gear ratio 19:1 → Exact reduction ratio 19.20:1
  • Gear ratio 51:1 → Exact reduction ratio 50.89:1

Planetary Gear Motor Weight:

  • THOR 3548 gear ratio 14:1 weight = 349 g
  • THOR 3548 gear ratio 19:1 weight = 350 g
  • THOR 3548 gear ratio 51:1 weight = 389 g

Planetary Gearbox Speed (RPM) Calculations:

  • Motor Speed (RPM) = Motor KV value × Applied Voltage → Example: 900KV Motor speed at 14V → 900 × 14 = 12,600 RPM
  • Gearbox Speed (RPM) = Motor speed ÷ Exact reduction ratio → Example: (Gear speed (RPM) at Ratio 19:1 & 14 Volts) → 12,600 ÷ 19.2 = 656 RPM
Design
Design
Compatible With
Compatible With

Inside THOR 3548

THOR 3848 comes equipped with a premium planetary gearbox, providing smooth acceleration, minimal backlash, and enhanced load handling — making it the ideal choice for robotics, RC vehicles, and smart automation projects.

THOR series offers an exceptional size-to-power ratio, peak torque output, and rugged reliability — engineered for creators, builders, and professionals who demand nothing but the best.

High Power Outrunner

Next-Generation Brushless Motor Technology Replaces traditional brushed motors with a more efficient, longer-lasting solution. Offers reduced maintenance, lower heat, and higher reliability over time.
High-Torque OutRunner Design: Featuring an external rotor that spins around the stator, this motor generates significantly higher torque at lower speeds. This design improves thermal stability and energy efficiency, eliminating the need for bulky gearing and simplifying your project's design.

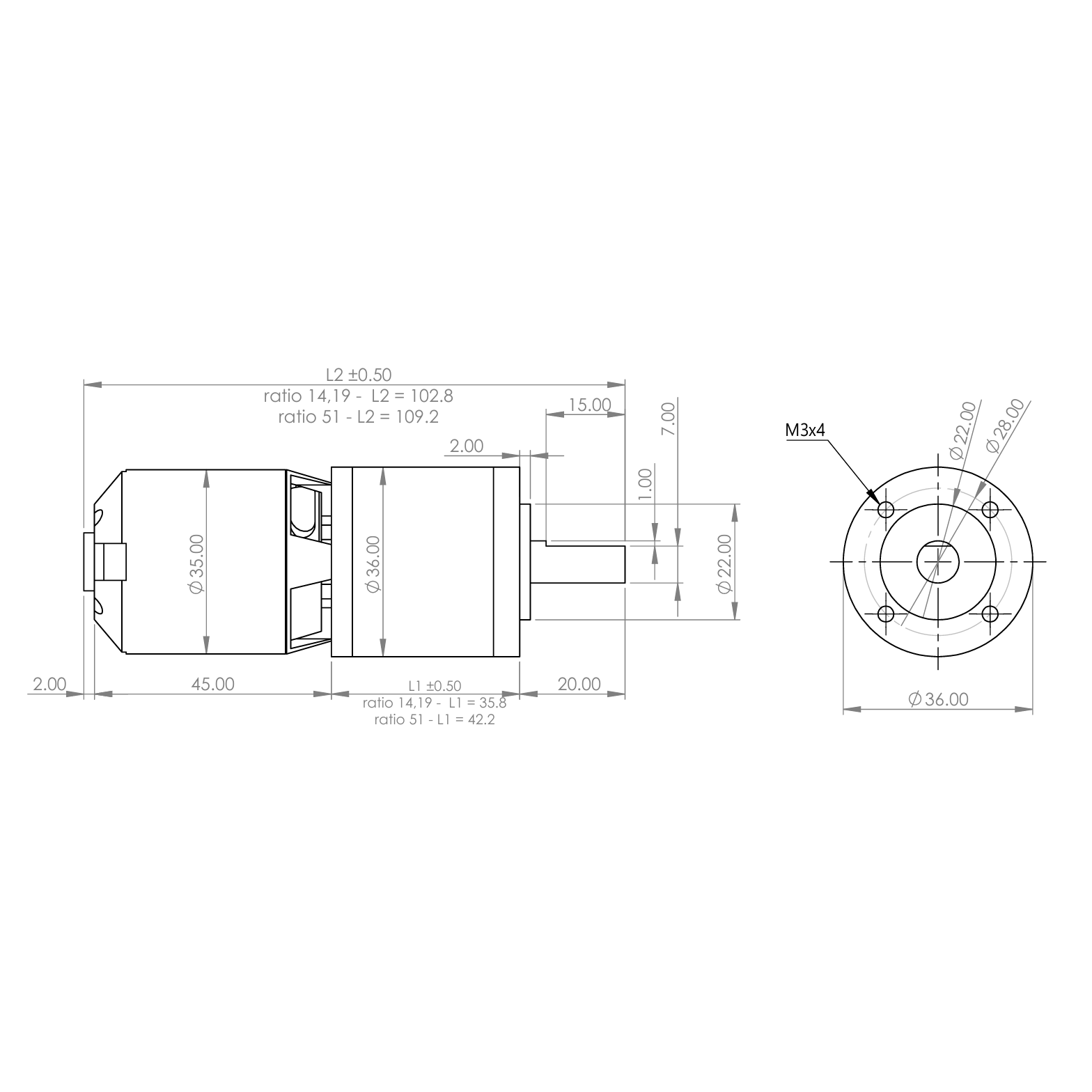

Motor Dimensions in mm

Motor Connection Guide

Connecting your brushless motor to the ESC is simple: both components have three wires.

  • Connect each of the three motor wires to the three ESC output wires — left, middle, and right.
  • The middle wire of the motor must always connect to the middle wire of the ESC. Do not change this connection.
  • You can swap the left and right wires if you want to reverse the motor’s rotation direction.

FAQs

Do you ship your products Worldwide?

Yes. We ship worldwide and process most orders within 24 hours for fast and secure delivery.

What makes the MAXYNOS THOR 3548 motor different from smaller models?

The THOR 3548 offers higher power output (up to 1000W) and torque compared to smaller motors like the 2826 and 2830. It is designed for larger robotics, RC vehicles, and automation projects that need more strength and load capacity.

What gearbox ratios are available for the THOR 3548?

The THOR 3548 comes in three gearbox ratios: 14:1 (13.73 exact), 19:1 (19.20 exact), and 51:1 (50.89 exact). This flexibility allows you to select the right balance between speed and torque for your project.

Which ESC is recommended for the THOR 3548?

For safe operation, we recommend the Maxynos 45A ESC or higher. This ensures the motor performs reliably at its rated voltage and current levels, whether you choose the 900KV or 790KV version.

What applications is the THOR 3548 best suited for?

This motor is ideal for heavier robotics projects, RC aircraft, electric vehicles, and advanced automation systems. Its planetary gearbox provides smooth acceleration and precise handling under demanding loads.

What is the weight of the THOR 3548 motor?

The weight depends on the gearbox ratio. The 14:1 version weighs 349 g, the 19:1 version weighs 350 g, and the 51:1 version weighs 389 g. This makes it a powerful yet compact choice for high-performance builds.
