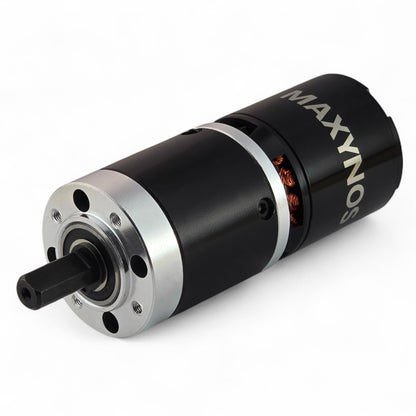

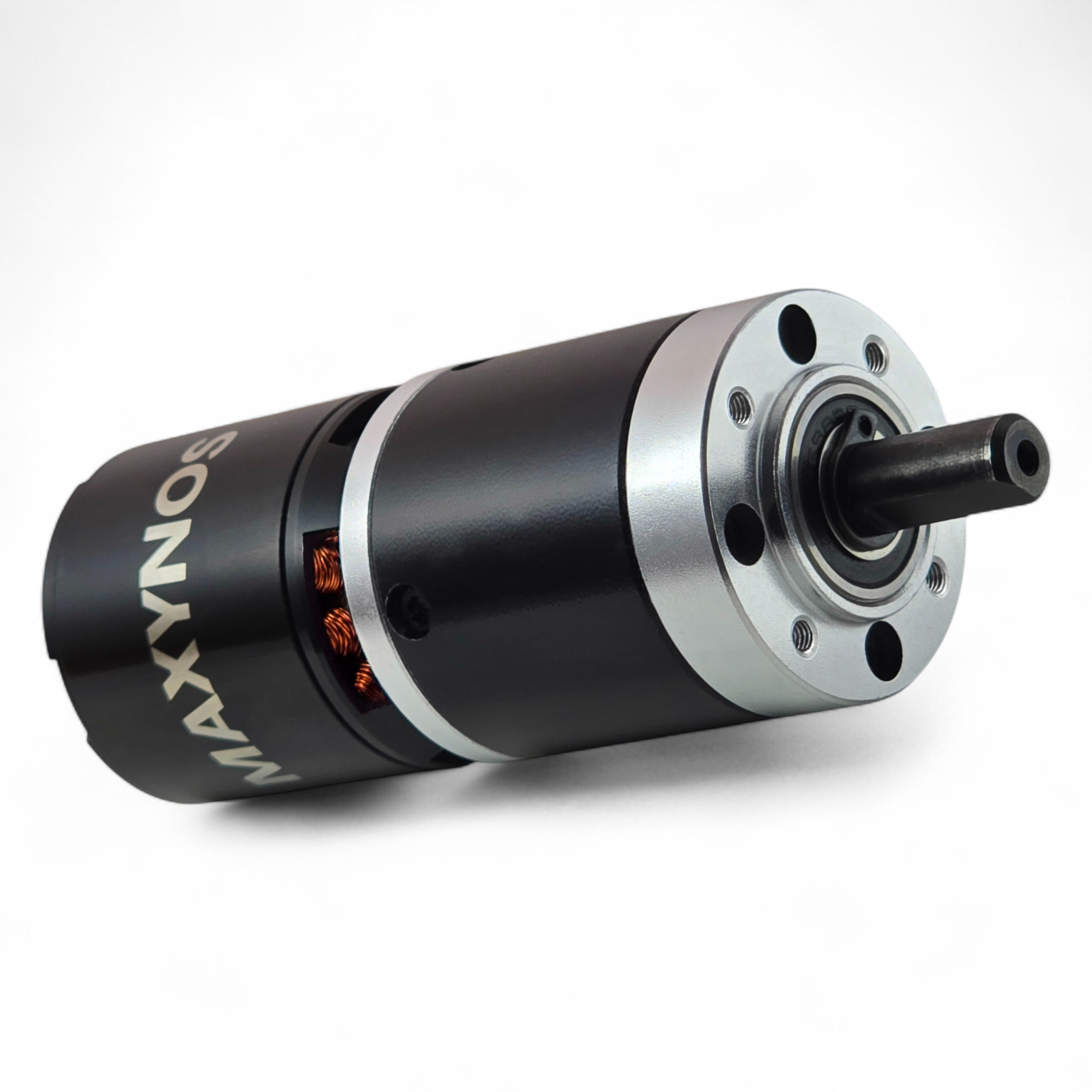

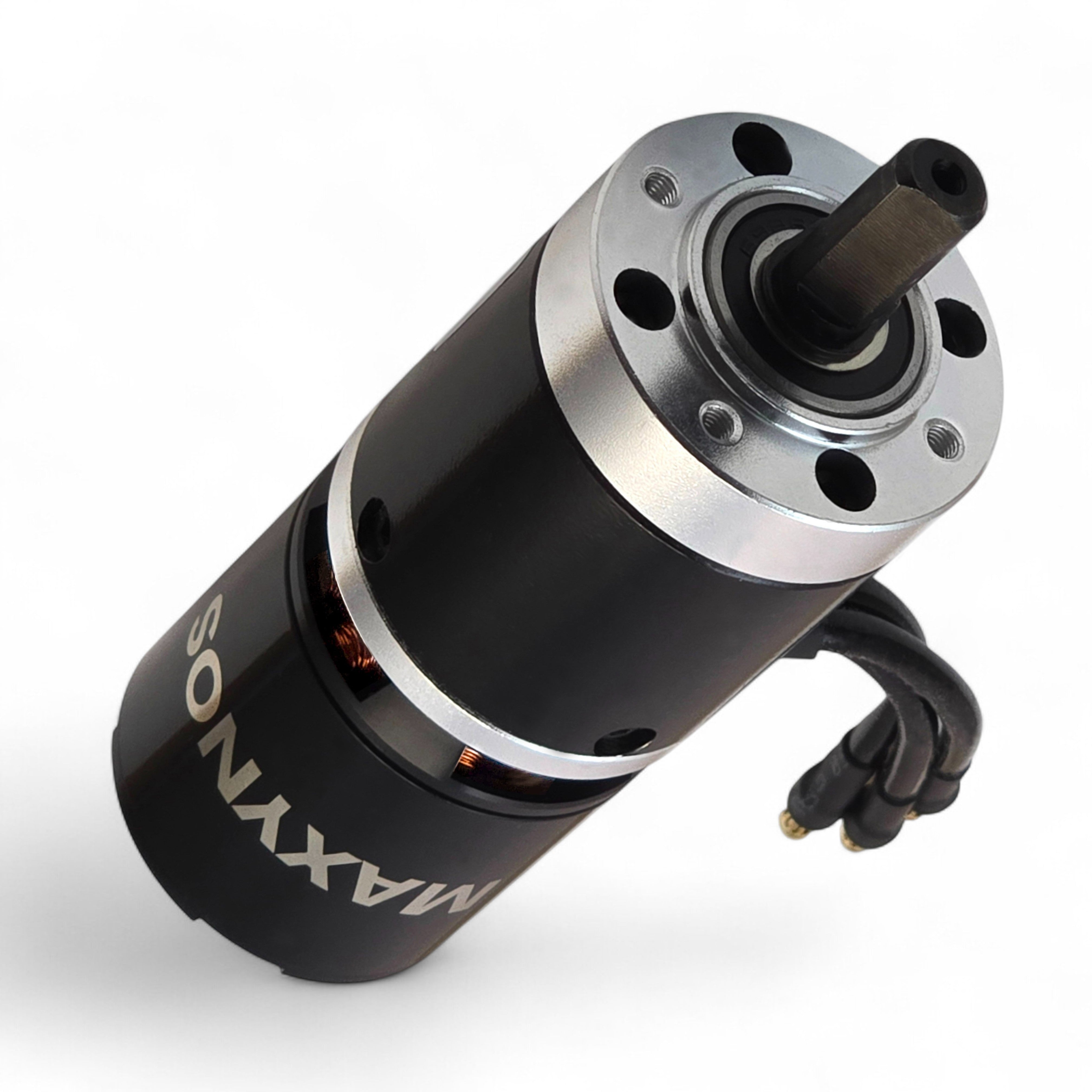

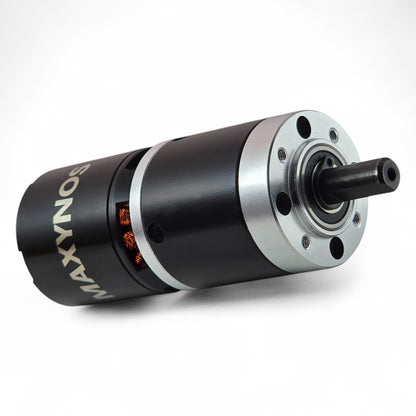

The MAXYNOS THOR (Titan High-power Out Runner) series is a premium line of Planetary Gearbox Brushless DC Motors engineered for superior performance, where the Output Rotor placed outside the motor core to obtain highest torque and provide the maximum limit of power consumption, efficiency and the best size to power ratio.

MAXYNOS THOR PGBM series is your definite choice when it comes to maximum power, torque, speed, and size.

Gearbox Ratio
Gearbox Ratio: 1:14 Ratio
KV Rating
KV Rating: 900KV
$65.00
Shipping calculated at checkout.

Pairs well with ESC

Additional Product details

Find more about the Product

Specifications:
Specifications:

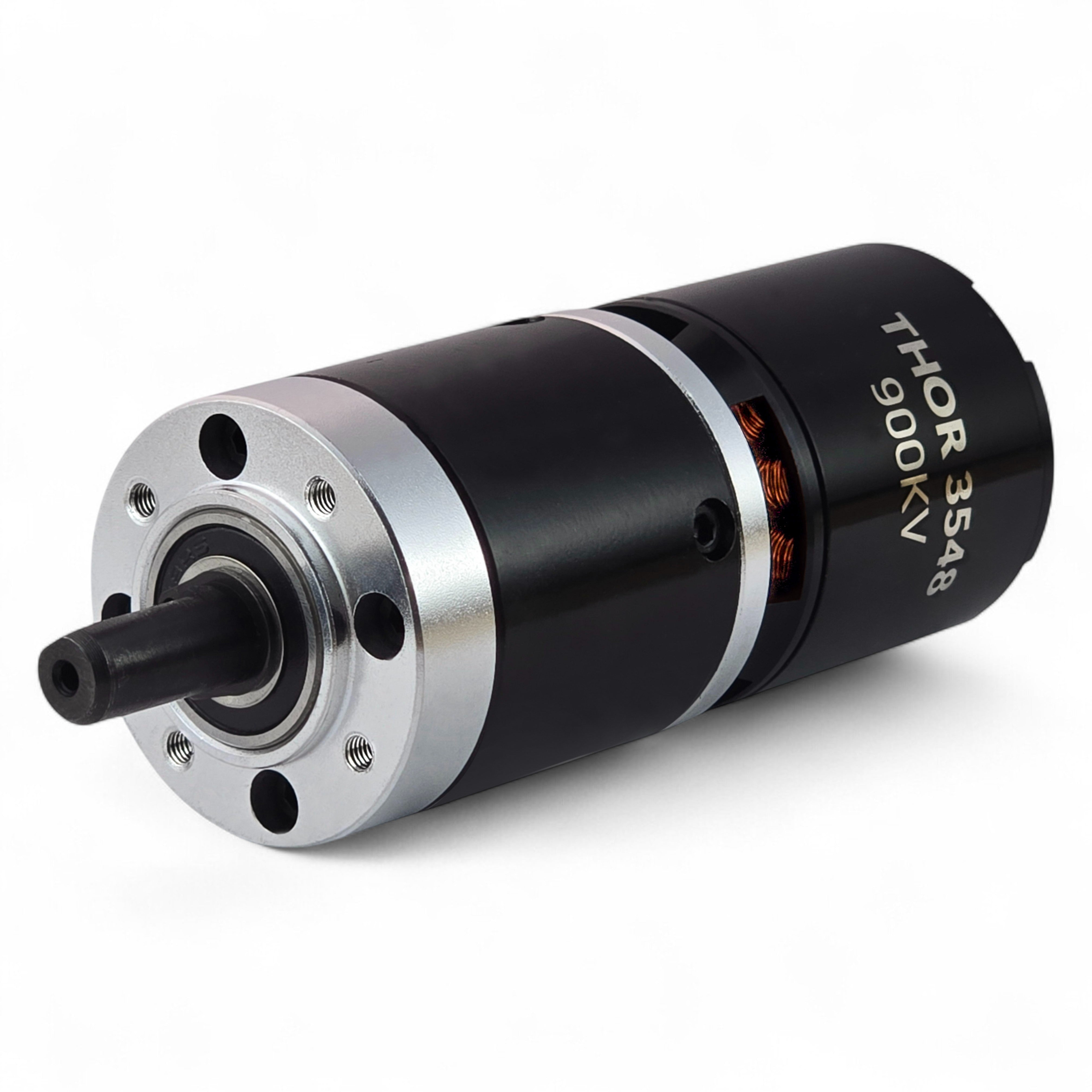

900KV Motor Specifications:

  • Rated Voltage: DC 7–18V
  • Power: 1000W
  • No-Load Current: 2.2A
  • Stall Current: 60A
  • Number of Poles: 14
  • Internal Resistance: 0.033 Ohm

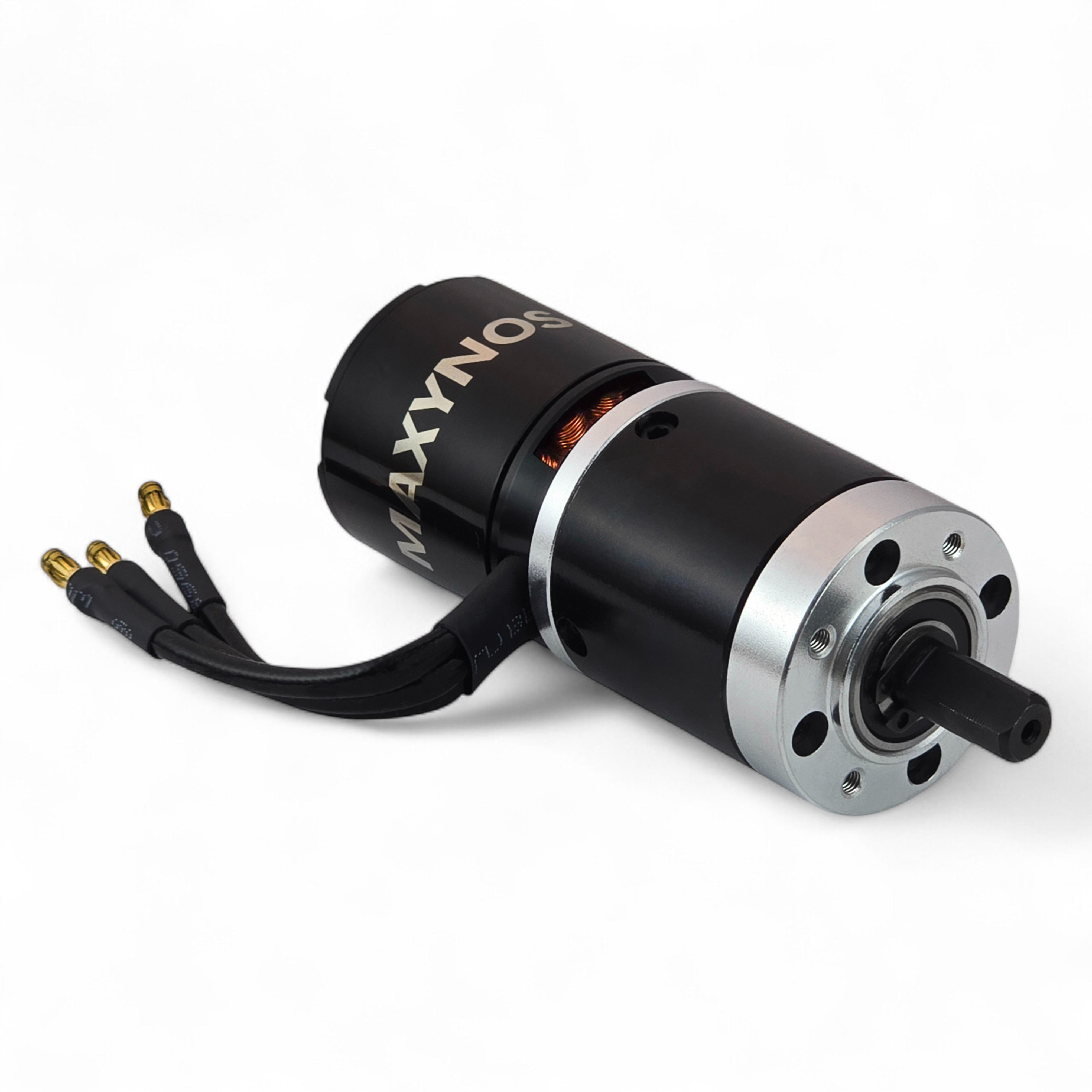

  • Connector: 3.5mm bullet plug

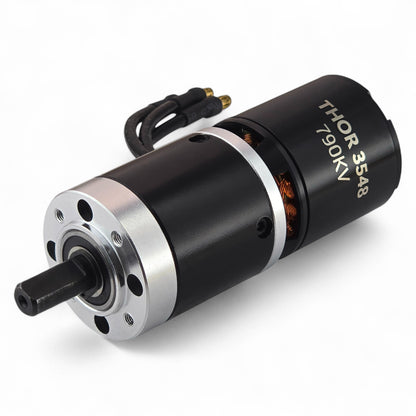

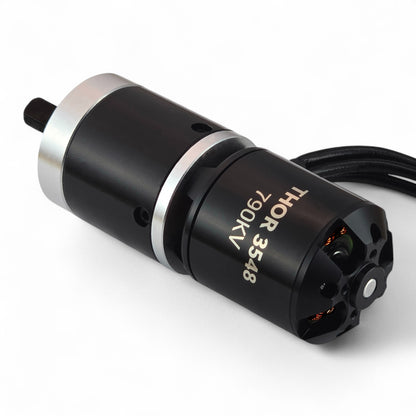

790KV Motor Specifications:

  • Rated Voltage: DC 10–20V
  • Power: 840W
  • No-Load Current: 2.0A
  • Stall Current: 50A
  • Number of Poles: 14
  • Internal Resistance: 0.051 Ohm
  • Connector: 3.5mm bullet plug

Planetary Gearbox – Exact Reduction Ratio:

  • Gear ratio 14:1 → Exact reduction ratio 13.73:1
  • Gear ratio 19:1 → Exact reduction ratio 19.20:1
  • Gear ratio 51:1 → Exact reduction ratio 50.89:1

Planetary Gear Motor Weight:

  • THOR 3548 gear ratio 14:1 weight = 349 g
  • THOR 3548 gear ratio 19:1 weight = 350 g
  • THOR 3548 gear ratio 51:1 weight = 389 g

Planetary Gearbox Speed (RPM) Calculations:

  • Motor Speed (RPM) = Motor KV value × Applied Voltage → Example: 900KV Motor speed at 14V → 900 × 14 = 12,600 RPM
  • Gearbox Speed (RPM) = Motor speed ÷ Exact reduction ratio → Example: (Gear speed (RPM) at Ratio 19:1 & 14 Volts) → 12,600 ÷ 19.2 = 656 RPM
Design
Design
Compatible With
Compatible With

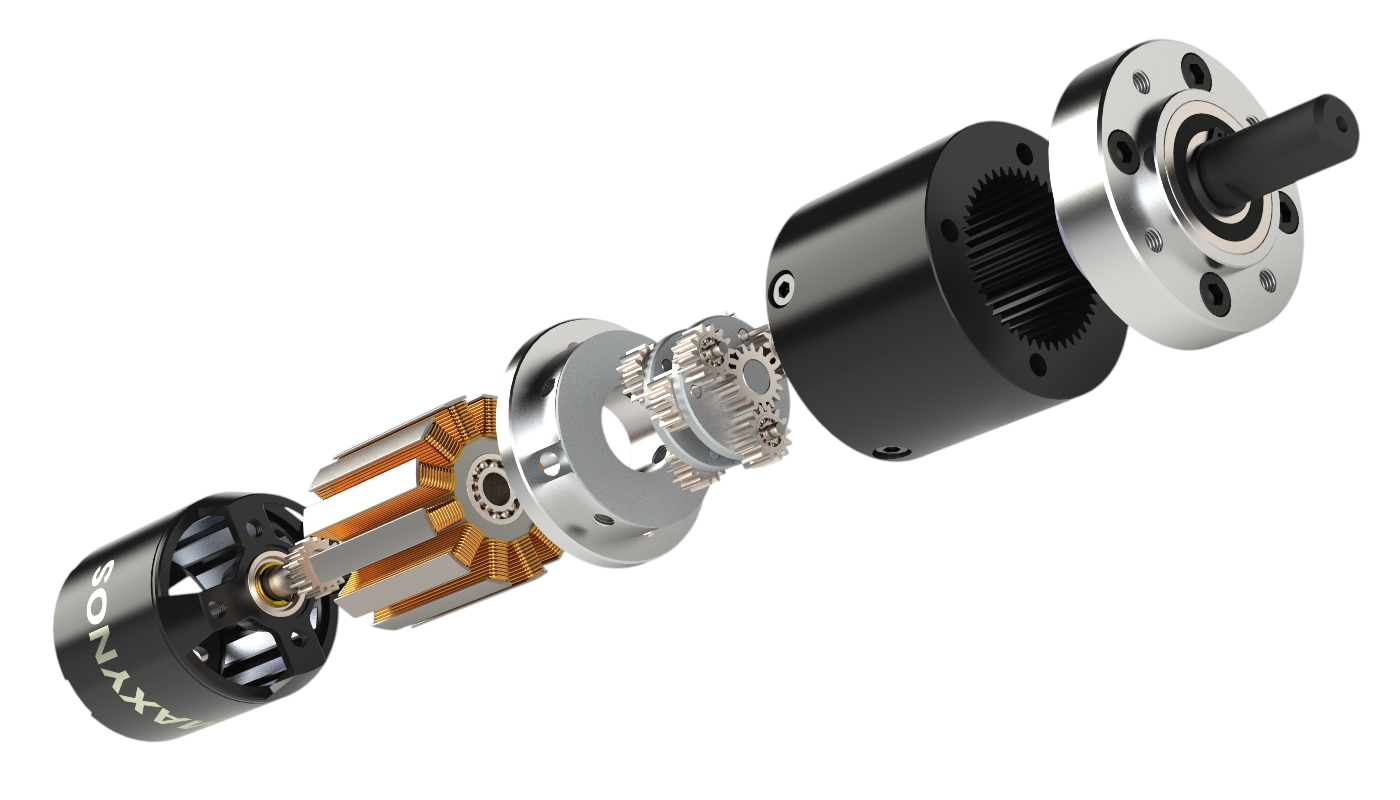

Inside THOR 3548

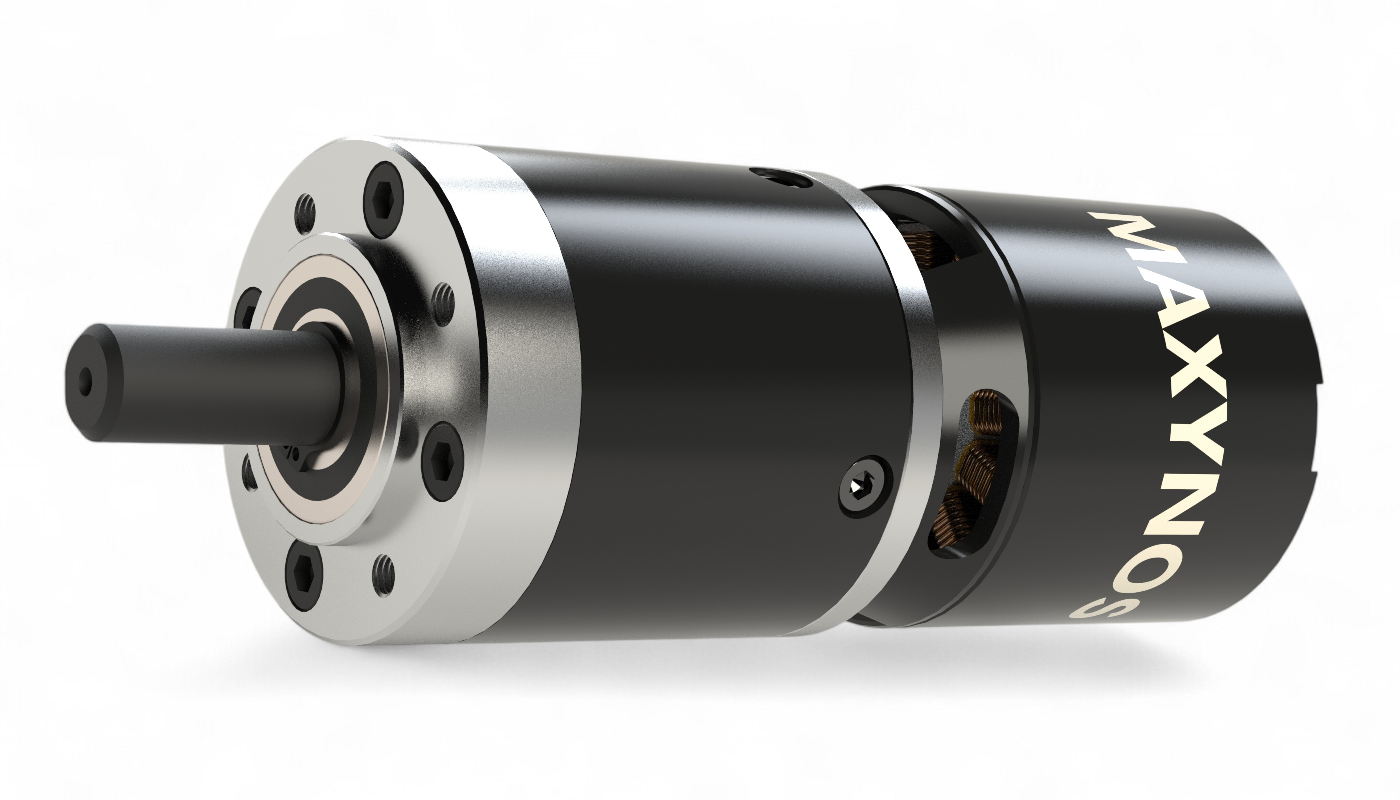

THOR 3848 comes equipped with a premium planetary gearbox, providing smooth acceleration, minimal backlash, and enhanced load handling — making it the ideal choice for robotics, RC vehicles, and smart automation projects.

THOR series offers an exceptional size-to-power ratio, peak torque output, and rugged reliability — engineered for creators, builders, and professionals who demand nothing but the best.

High Power Outrunner

The THOR 3848 comes equipped with a premium planetary gearbox, providing smooth acceleration, minimal backlash, and enhanced load handling — making it the ideal choice for robotics, RC vehicles, and smart automation projects.

THOR series offers an exceptional size-to-power ratio, peak torque output, and rugged reliability — engineered for creators, builders, and professionals who demand nothing but the best.

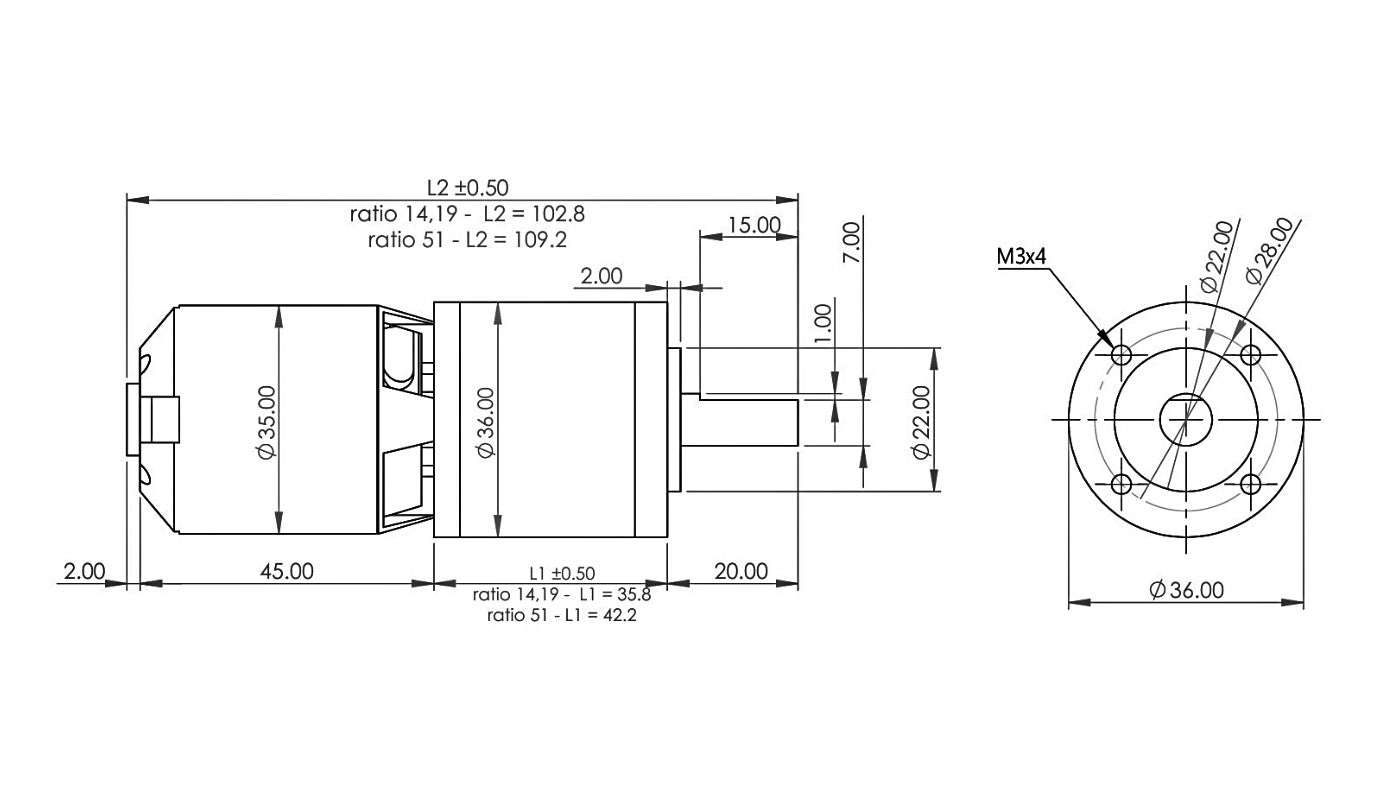

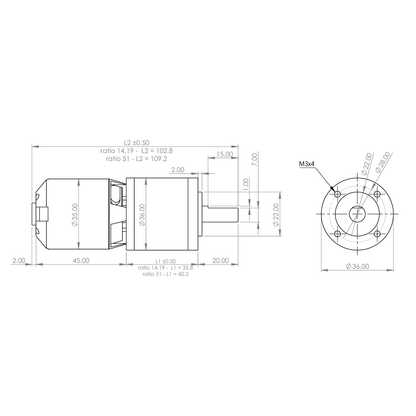

Motor Dimensions in mm

Premium Performance with N52 Magnets & Copper Windings

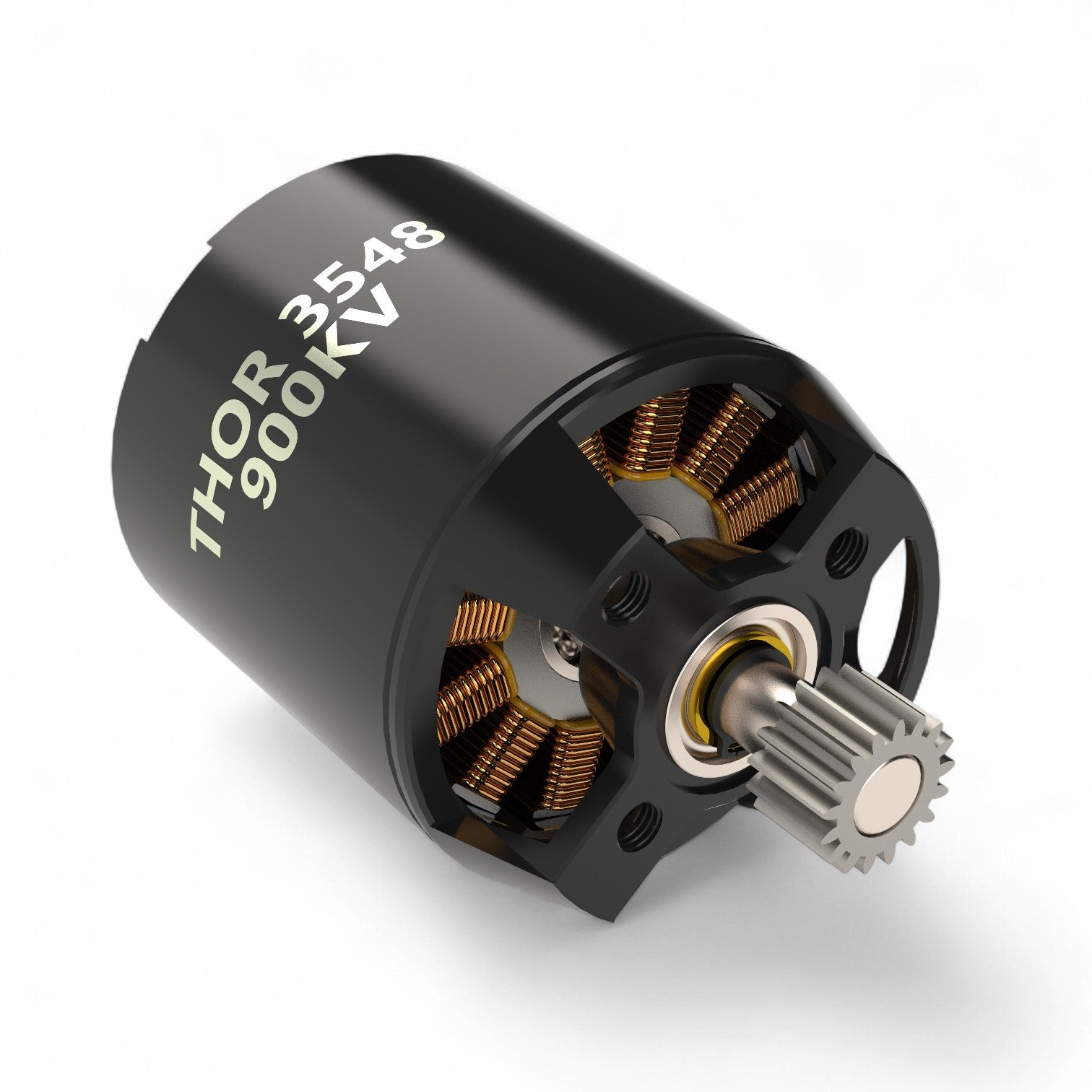

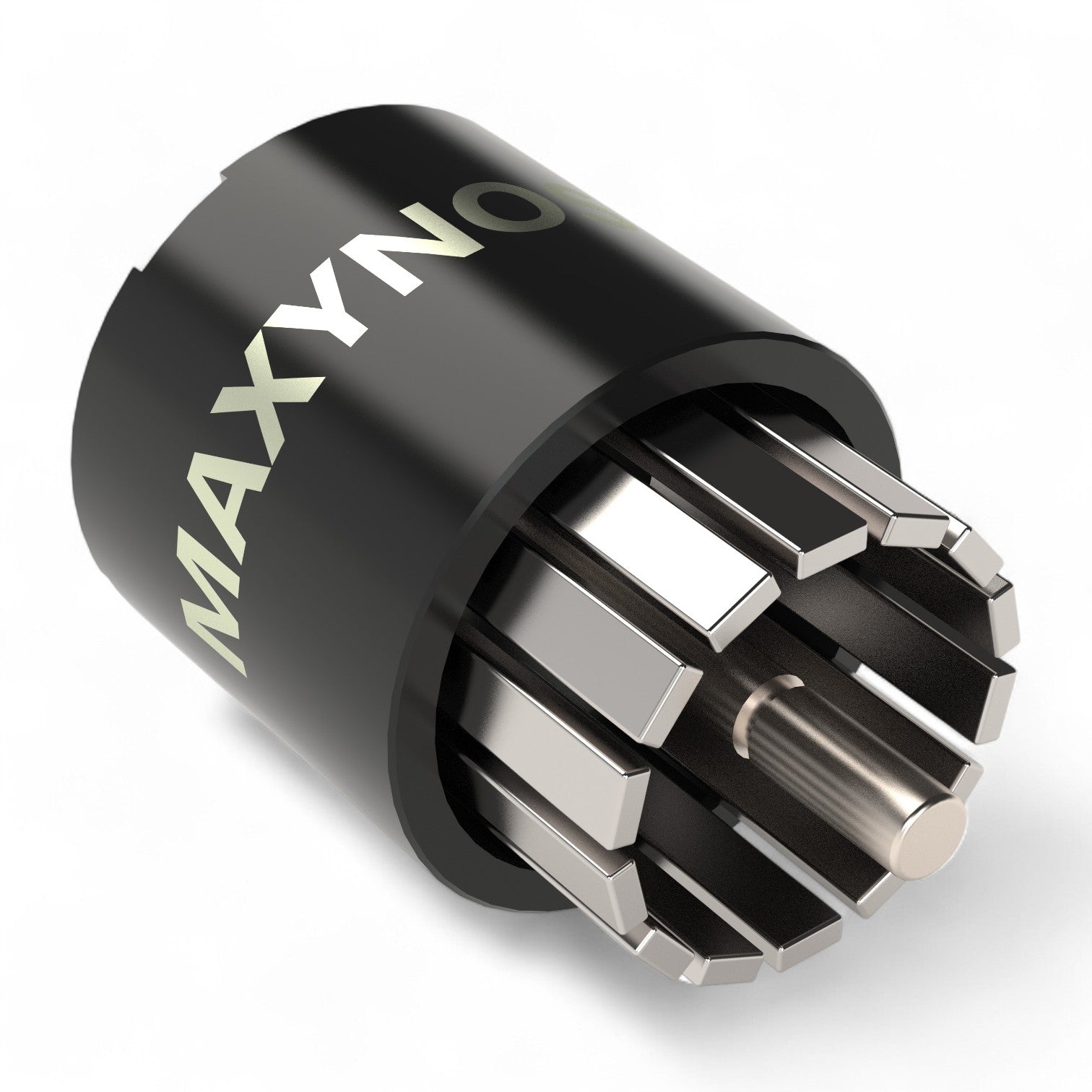

High-Grade N52 Neodymium Magnets

This motor is built with 14 premium N52 neodymium magnets inside the rotor, delivering extreme magnetic strength and smooth rotation. The combination ensures maximum torque, higher efficiency, and consistent long-term performance under demanding loads.

High-Purity Copper Windings

The 12-slot stator is wound with high-purity copper coils for superior conductivity and reduced energy loss. Engineered with precise KV rating calibration, giving you accurate speed and torque output tailored to your needs.

FAQs

Do you ship your products Worldwide?

Yes. We ship worldwide and process most orders within 24 hours for fast and secure delivery.

What makes the MAXYNOS THOR 3548 motor different from smaller models?

The THOR 3548 offers higher power output (up to 1000W) and torque compared to smaller motors like the 2826 and 2830. It is designed for larger robotics, RC vehicles, and automation projects that need more strength and load capacity.

What gearbox ratios are available for the THOR 3548?

The THOR 3548 comes in three gearbox ratios: 14:1 (13.73 exact), 19:1 (19.20 exact), and 51:1 (50.89 exact). This flexibility allows you to select the right balance between speed and torque for your project.

Which ESC is recommended for the THOR 3548?

For safe operation, we recommend the Maxynos 45A ESC or higher. This ensures the motor performs reliably at its rated voltage and current levels, whether you choose the 900KV or 790KV version.

What applications is the THOR 3548 best suited for?

This motor is ideal for heavier robotics projects, RC aircraft, electric vehicles, and advanced automation systems. Its planetary gearbox provides smooth acceleration and precise handling under demanding loads.

What is the weight of the THOR 3548 motor?

The weight depends on the gearbox ratio. The 14:1 version weighs 349 g, the 19:1 version weighs 350 g, and the 51:1 version weighs 389 g. This makes it a powerful yet compact choice for high-performance builds.
